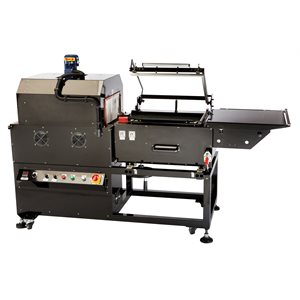

Eastey Shrink Combo Unit, Hot Wire, Mesh Belt, 16" x 20", Value Series

Part Number: VS1620-TMBV1

Proven reliable over and over again, these intermediate-level EASTEY L-Sealers provide you with all the quality features found in many higher-priced machines. Depending on your application, users can choose between a hot knife or hot band seal system to provide a positive seal on a wide variety of films including polyethylene, polyolefin, and PVC.

$9,895.00 /EACH
List price: $9,895.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Seal head system available as a hot knife or hot band depending on your application
• Designed to seal polyolefin or PVC shrink films
• All-welded main frame from 12 gauge steel
• Seal head equipped with gas shock head return
• Dual locking magnet clamps apply consistent pressure across seal bar
• Automatic cycle timing with adjustable dwell time
• Solid state temperature control adjustable for a variety of films
• Wide product tray provides large work area
• Seal head can be raised or lowered to center-seal product
• Film rack positioned beneath product tray for simple film loading
• Adjustable pin perforator provides air evacuation
• Positive shrinking of all products assured with consistent air flow
• Variable speed tunnel conveyor and variable air flow for a variety of shrink applications
• Rugged stainless steel mesh belt conveyor or live roller conveyor on tunnel
• Heavy duty casters for transportation within plant
• Easy to use design requires minimal training and maintenance

Specifications

Specifications
Seal Dimensions: 20" Front x 16" Side
Heat Chamber Dimensions: 15"W x 8"H x 26"L
Machine Dimensions: 32"W x 53.25"H x 86.5"L
Accepted Films: Polyolefin, Polyethylene, and PVC
Max Film Width:  18"
Sealer Head Type: Hot Wire
Tunnel Belt Type: Mesh Belt
Power: Available in 220V 30A Single Phase
Weight:
 650 lbs.
Shipping Weight: 750 lbs.

Documents


 Technical Sheet  User Guide
