Meech 995 Pinning Head - 4 Pins, 2 Rows, 65 mm Length
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech 995 Pinning Head - 4 Pins, 2 Rows, 65 mm Length

Part Number: 995R-4P2R

The Meech 995 is designed for pinning of non-conductive materials with the use of a static charge. Resistively coupled electrodes of the pinning head are energized with 50kV DC from the IonCharge50 Generator. The electrodes emit this energy in the form of a corona discharge. This electrical discharge creates an ion stream of a single polarity defined by the polarity (+) or (-) of the DC generator. Non-conductive materials passing through the ion stream - between the emitters of the head and a grounded plate - take on the same electrical charge and adhere to the ground plate or another material. These pinning heads are also available in 30kV versions.

$763.00 /EACH
List price: $763.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

- 995 Pinning Head (up to x2 per power supply)

IonCharge50 Power Supply (x1)

900IPS Power Cable (96W) (x1)

Specifications

 Technical Data
Operating Voltage: Up to 50kV
Cable: 2 meters shielded in flexible conduit (longer lengths available)
Construction: PTFE extrusion, titanium emitter pins
Max Temperature: 115º C (239º F)
Polarity: Either positive or negative
Dimensions: 65mm (L) x 30mm (W) x 50mm (H)

Documents

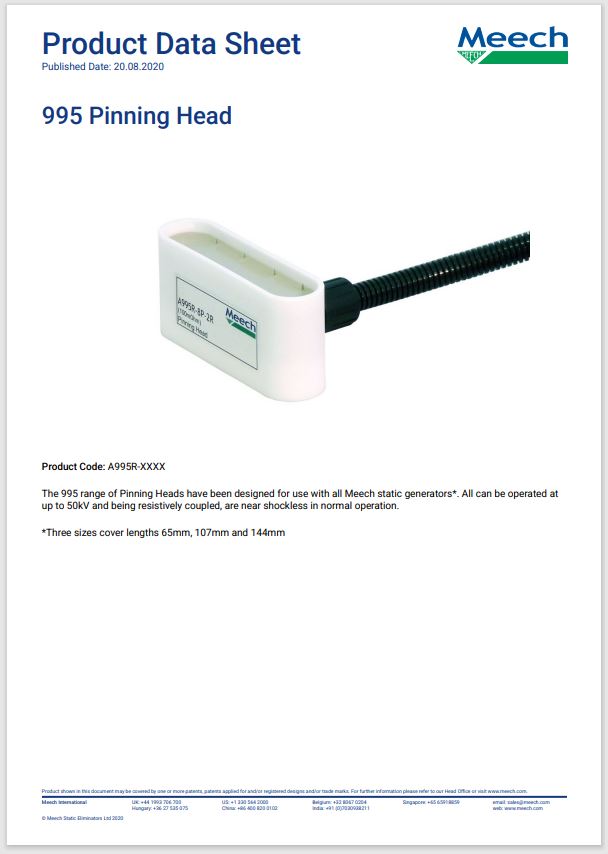

Data Sheet
