Akiles Finish@Coil-E1 High Capacity Electronic Coil Inserter w/ Built-in Crimper
Double-tap and hold to zoom.
Mouse over the image to zoom.

Akiles Finish@Coil-E1 High Capacity Electronic Coil Inserter w/ Built-in Crimper

Part Number: AFAC-E1

The Finish@Coil E1 stands out as an incredibly user-friendly coil finisher, designed for maximum productivity with minimal effort. Its adjustable rollers and high-capacity electric coil inserter streamline the process, even for large diameters. The built-in electric crimper enhances your binding process, eliminating the need for manual crimping and saving your wrists from strain. Simply use the foot pedal to quickly trim excess coil. Ideal for busy binding centers seeking efficiency and top-quality results with ease.
$839.00 /EACH
List price: $839.00 /EACH
    • EACH
  • Availability: Available to Order

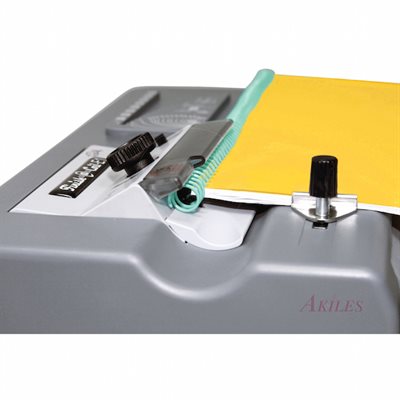

Full Length Roller with Adjustable Roller Mechanism: 11-3/8" EPDM roller provides high friction and durability (Foot-pedal operated). Adjustable bottom roller makes it easy to insert coils of different sizes, even the extra-large ones.
Built-in Electric Coil Crimpers: Provides consistent & perfect crimps on all coil sizes up to 50mm with a simple press of foot-pedal. Avoid using cumbersome manual crimpers while saving your time and wrist fatigue. Foot pedal operated.
Syncronized Roller/Crimper Adjustment: Makes it easy to set the correct roller position & crimper angle on the machine for different coil sizes.
Adjustable Crimper Head Mechanism: For perfect crimp result in all coil sizes, without the expense & hassle to purchase/install different crimper heads.
Foot Pedal Operation: Allows the free use of both hands and grants the operator complete control while inserting or crimping the coil. Manual Operation Mode Switch allows the operator to choose between “Insert” and “Crimp” action when foot pedal is pressed.
Automatic Mode Selection Sensor: With this innovative feature, operator can set the machine on AUTO mode, which automatically switches foot-pedal operation between “Insert” and “Crimp” by its built-in sensor.
Built-in Coil Diameter Scale: Helps to verify the coil diameter size.
Built-in Coil Diameter Selector: To best select the correct coil diameter size corresponding to the thickness of your document.
Built-in Pitch Identifier: Verifies that the coil pitch matches that of the punched document.
Built-in U-shaped Alignment Channel: Aides in conforming the spine of larger diameter documents to the coil’s shape, for a faster and easier insertion.



Technical Data
Model: Finish@Coil-E1
Inserting: Electric
Crimping: Electric
Motor: Heavy-Duty
Inserting Roller: Full size 11-3/8" EPDM Roller
Binding Capacity: Up to 50mm
Adjustable Roller: Yes
Machine Dimensions: 14.5" L x 10.5" W x 5.75" H
Carton Dimensions: 17" L x 14" W x 10" H
Weight & Volume: 18 lbs & 1.37 CbFt
Warranty: One year



Brochure Operation Manual
