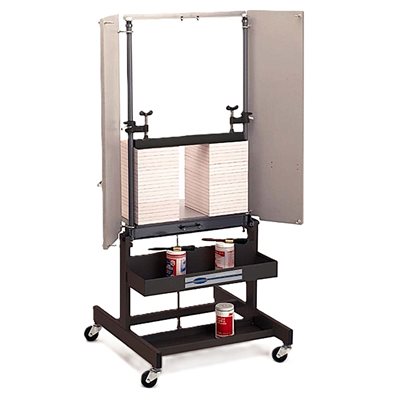

Challenge Paddy Wagon Padding Press

Part Number: CMC-591

The Paddy Wagon Padding Press is a portable and high capacity padding solution. It's design eliminates the mess associated with pad production. Integral shelves store all your padding equipment and doubles as a spill apron to catch excess padding compound. Large diameter casters allow you to roll the Paddy Wagon to the cutter, folder or wherever the action is. When finished, simply roll aside to dry or until needed for your next padding job.

$1,100.00 /EACH
List price: $1,100.00 /EACH
    • EACH
  • Availability: Available to Order

1-2-3 Operation

1-Tilt & Load: With the double doors locked, tilt the Paddy Wagon back. The 30 degree table slant allows gravity to do all the work of aligning stock and keeping it square. Load up to 15,000 8.5" x 11" sheets of 20# bond - even more with smaller sheets.

2-Clamp: After loading is complete, aligned stacks are clamped in seconds. Place the clamping bar on top of your paper, slide the self-locking, quick-release clamps down to the bar and tighten the screws.

3-Tilt & Pad: Tilt the Paddy Wagon back to the upright position, lift the doors to unlock and swing them open for complete access to your padding surface.



Specifications

Technical Data
Max Lift Height: 31"
Max Lift Width: 23.5"
Lift Depth: 3" to 17"
Capacity Example: 15,000 8.5" x 11" of 20# bond
Pass-thru Door Size: 32"
Overall Base Area:  30" x 30"
Overall Height:  66.5"
Net Weight:  100 lbs
