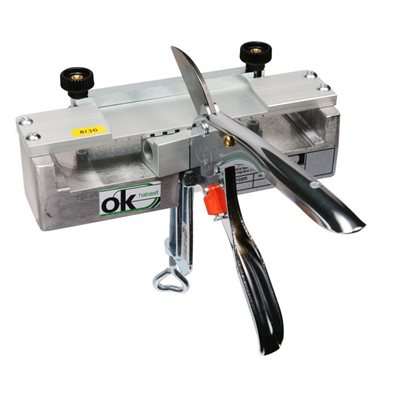

Habasit Fexproof Finger Cutter 100mm (8 x 30mm fingers)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Habasit Fexproof Finger Cutter 100mm (8 x 30mm fingers)

Part Number: AF102

Habasit's AF102 is a flat belt cutting tool for Flexproof joining.

Cut belts up to 100mm wide x 2mm thick

Creates standard 8 x 30mm finger size

Indexing grooves for precise cutter aligment

$847.36 /EACH
List price: $847.36 /EACH
    • EACH
  • Availability: In stock

The AF-102 is a device for preparing (finger cutting) Habasit machine tapes for Flexproof (finger) joints. It is suitable for the standard Habasit 8 x 30 mm finger geometry. The tape is positioned and securely clamped on an aluminum support. Fingers are then cut manually. The cutter is precisely positioned on the support with a pin matching a row of precisely cut indexing grooves; the angle is given by a guiding block fixed to the cutter. The AF-102 is suitable for the occasional on-site preparation of Hamid tapes.

Habasit # H080690060

Specifications

AF-102 Cutter
Belt Joint Type: Flexproof
Belt/Tape Max Width: 100mm (4 in)
Belt/Tape Max Thickness: 2mm (0.08 in)
Dimensions (mm): 220 x 52 x 85mm
Dimensions (in.): 7.87" x 2.05" x 3.35"
Weight: 1.60 kg (3.53 lbs)

Documents

You May Also Be Interested In

Habasit Flexproof & Quickmelt Hot Pressing Device w/Case 50mm
  • $1,725.75 /EACH
  • List price $1,725.75 /EACH
  • EACH
  • Availability: In stock
Habasit Guide Rail Set 1"
  • $137.15 /EACH
  • List price $137.15 /EACH
  • EACH
  • Availability: In stock

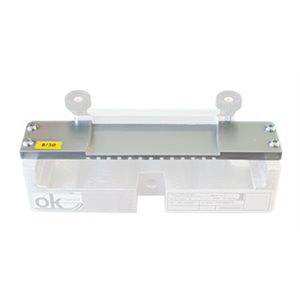

Habasit Top Cutting Plate For AF102 Flexproof Finger Cutter
  • $271.85 /EACH
  • List price $271.85 /EACH
  • EACH
  • Availability: In stock

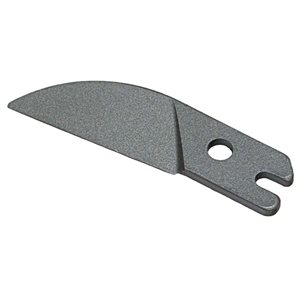

Habasit Replacement Blade for AF102 Flexproof Finger Cutter
