Heavy Duty Laminator, 13" Infeed

The FlashGuard 13R6 Heavy-Duty Laminator is built for high-volume environments, handling pouches up to 13" wide and 14 mil thick to deliver professional, bubble-free results for everything from IDs to signage. With a user-friendly LCD control panel, customizable settings, six heavy-duty rollers, and both hot and cold lamination modes, it offers speed, precision, and versatility for consistent, high-quality document protection.

Features

• Heavy-duty 13" pouch laminator

• 6 rollers: 4 heating, 2 cooling

• Rugged all-metal housing

• Variable temperature up to 320°F

• Cold lamination function

• Laminates up to 55" per minute

• Handles pouches up to 14 mil

• Max laminating thickness: 3mm

• Graphics-based LCD control panel

• Stores 2 custom job settings

• Quick reference heat/speed chart

• Dedicated cool-down cycle

• Reverse function for jam clearing

• Includes 3 mil pouch starter pack

Specifications

Technical Data
Max Pouch Width:	Up to 13"
Max Speed:	Up to 55" per minute
Max Pouch Thickness:	Up to 14 mil
Max Laminating Thickness:	Up to 0.118"
Number of Rollers:	6
Temperature:	Up to 320° F
Temp & Speed Control:	Yes
Preheating Time:	6 minutes
Dimensions:	21" L x 10.6" D x 5" H
Weight:	34 lbs
Power:	1,500 watt 110-120V, 50/60Hz, 15A



Documents

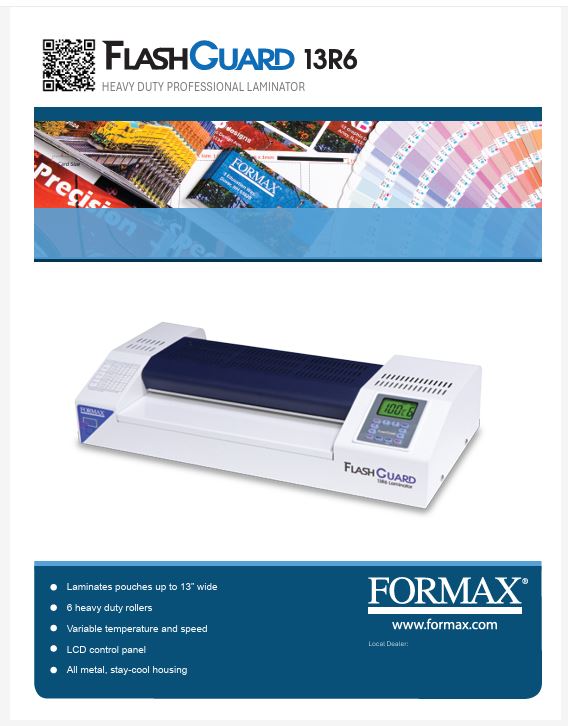

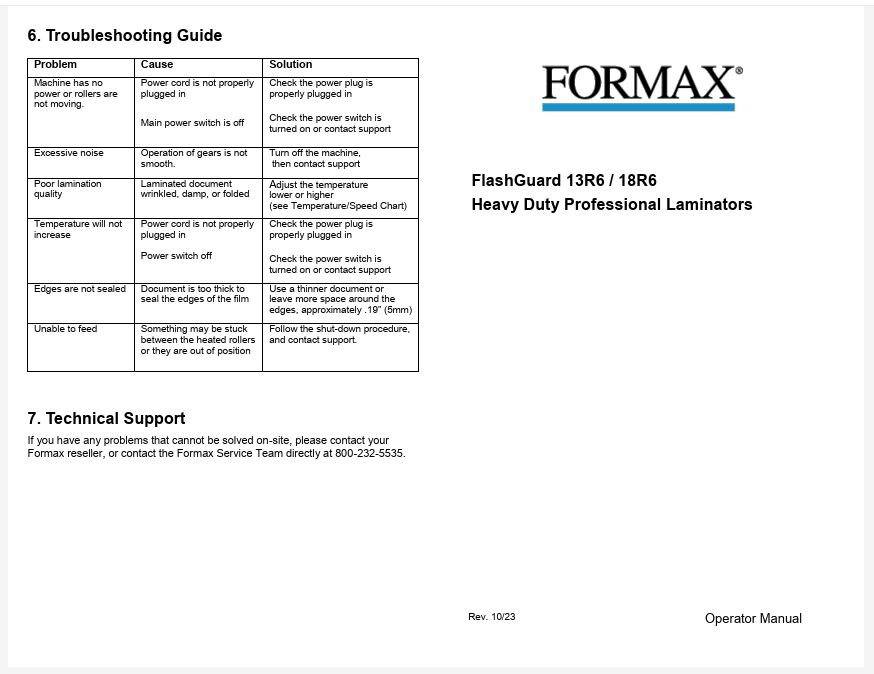

Spec Sheet	User Manual



Video
