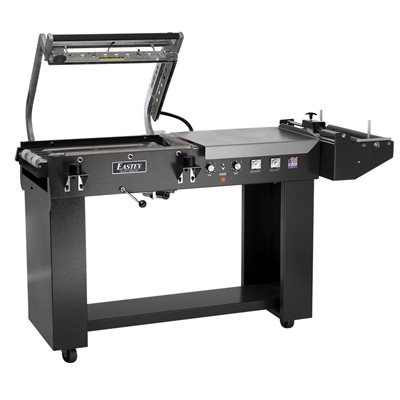

Eastey L-Bar Sealer, Hot Wire 16" x 22", 110V Performance Series

Part Number: EM1622-TV0

Proven reliable over and over again, these intermediate level EASTEY L-Sealers provide you with all the quality features found in much higher priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

$7,800.00 /EACH
List price: $7,800.00 /EACH
    • EACH
  • Availability: Available to Order

 Specifications
 Seal Dimensions:   22" Front x 16" Side
 Machine Dimensions:   27"W x 50"H x 63"L
 Accepted Films:  Polyolefin, Polyethylene, and PVC
 Max Film Width:  19"
 Sealer Head Type:  Hot Wire
 Power:  110V 20A Single Phase
 Weight:  400 lbs
 Ship Weight:  500 lbs

• Designed to seal most polyolefin, polyethylene, and PVC* shrink films

• All-welded main frame from 12 gauge steel

• Seal head casting equipped with head return cylinder

• Stainless steel film clamps hold film in place while sealing

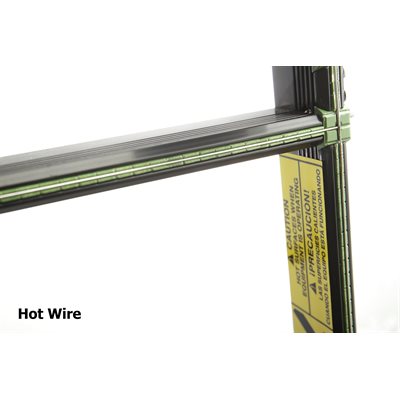

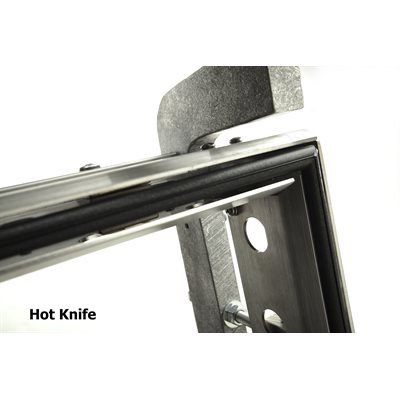

• Available with hot wire or hot knife seal systems

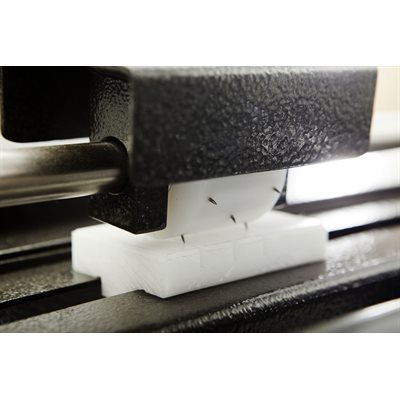

• Hot knife seal systems available with mushroom (standard), pancake, arrow, or poly inserts

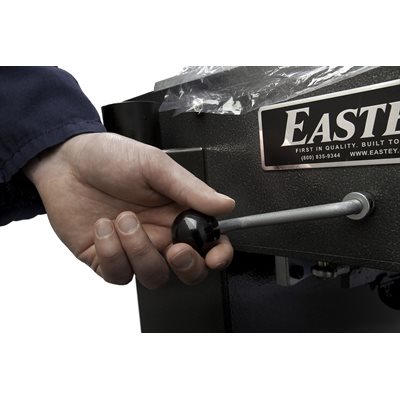

• Dual locking magnet clamps apply even pressure across seal bar

• Adjustable dwell time for better seal control

• Analog temperature control adjustable for a variety of films

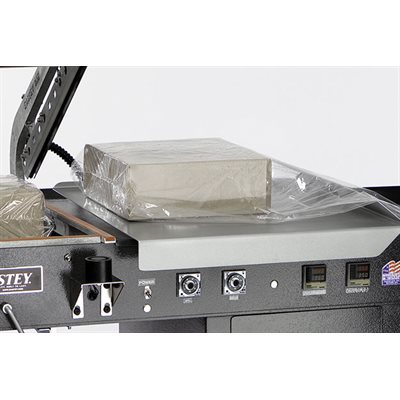

• Adjustable product tray accommodates wide variety of product sizes

• Takeaway conveyor can be raised or lowered to center-seal product

• Automatic takeaway conveyor with stainless steel mesh belting

• Heavy duty film roll support and simple film loading

• Adjustable pin perforator provides air evacuation

• Custom two-part epoxy finish resists scratching

• Heavy duty casters for transportation within plant

• Easy to use design requires minimal training and maintenance

• Seal size of 16” x 22” or 16” x 36”

• Maximum film width up to 19”
