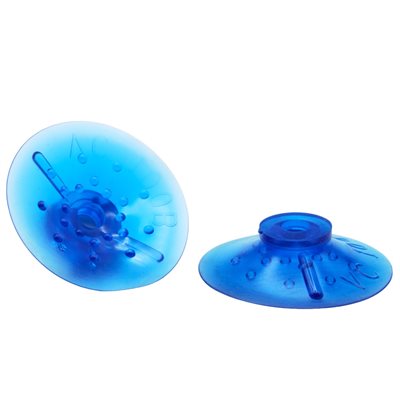

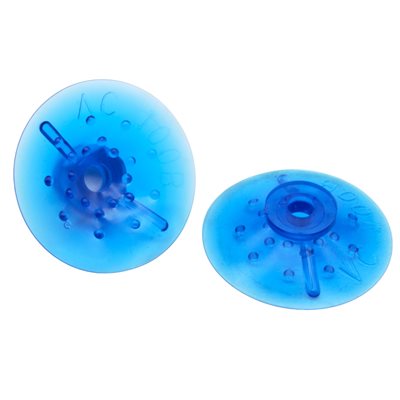

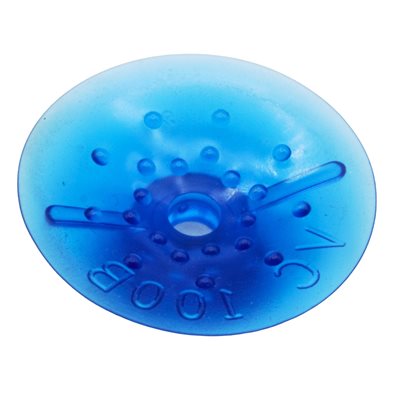

Blue Vinyl Vacuum Cup .50 H x 1.67 W x .25 Id With Cleats Style A
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .50 H x 1.67 W x .25 Id With Cleats Style A

Part Number: VC-100B

1x $5.69 /EACH
25x $5.26 /EACH
50x $4.73 /EACH
100x $4.05 /EACH
200x $3.40 /EACH
500x $3.12 /EACH
List price : $5.69 /EACH
    • EACH
  • Availability: Available to Order
 Dimensions in mm
Outer Lip Diameter 1.67 42.4
Mounting Stem ID 0.25 6.4
Overall Height 0.5 12.7

 General Information
 Material: Vinyl
 Mounting Type: Flange  Cleats: Yes
 Bellows: 0  Suggested Use: Label Placement

   Style A Dimensions in mm
 Dimension A 1.67 42.4
 Dimension B 0.5 12.7
 Dimension C 0.39 9.9
 Dimension D 0.43 10.9
 Dimension E 0.25 6.4
 Dimension F 0.65 16.5
 Dimension F1 0.09 2.3

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
