Back Gauge Tape Measure Challenge 305H (6A-4054-Mm)
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Challenge

Back Gauge Tape Measure Challenge 305H (6A-4054-Mm)

Part Number: T9-305H

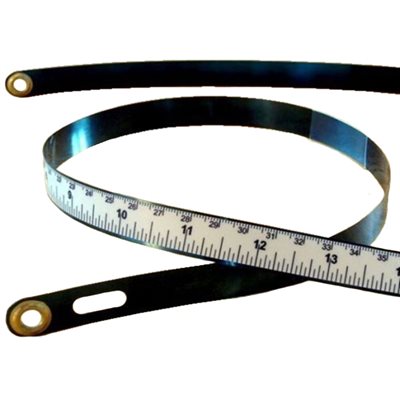

Back Gauge Tape Measure Assembly for Challenge 305, style H paper cutters.  (equivalent to the original Challenge part number 6A-4054 MM)  This aftermarket scale is made from 5/8" wide spring steel, the same as on the originals.  The overall length is 101 1/2" and the length between the center of the end grommets is 100 7/8".  The holes in the brass end grommets for the spring are 1/4" in diameter.  The mounting slot measures 1/4" wide by 3/4" long.  This tape measure fits most of the Challenge 30.5" Style H cutters.
$94.00 /EACH
List price: $94.00 /EACH
  • Machine Model : Challenge 305
    • EACH
  • Availability: Available to Order
