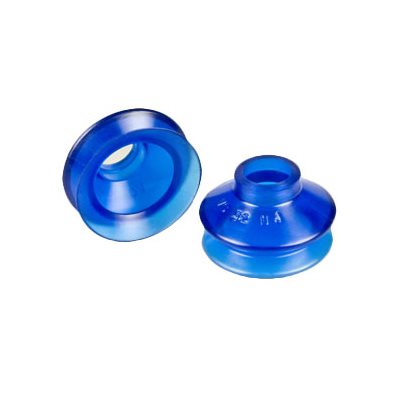

| General Information | |
| Material: Vinyl | |
| Mounting Type: Screw and Collar | |
| Bellows: 1 | Suggested Use: Uneven Surface |
 | Style D Dimensions | in | mm |
| Dimension A | 1.8 | 45.7 | |
| Dimension B | 1.2 | 30.5 | |
| Dimension C | 0.94 | 23.9 | |
| Dimension D | 0.98 | 24.9 | |
| Dimension E | 0.76 | 19.3 | |
| Dimension E1 | 0.26 | 6.6 | |
| Dimension F | 0.67 | 17 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
