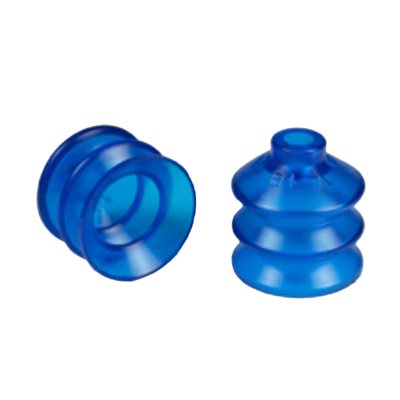

Blue Vinyl Vacuum Cup 1.28H x 1.21W x .27B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.28H x 1.21W x .27B Style K

Part Number: VC-B4A

  • Contact us for pricing

  • Availability: Available to Order
 Dimensions in mm
Outer Lip Diameter 1.21 30.8
Mounting Stem ID 0.27 6.9
Overall Height 1.28 32.5

 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 2  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A 1.21 30.8
 Dimension B 1.28 32.5
 Dimension C 1.09 27.7
 Dimension D 0.5 12.7
 Dimension F 0.27 6.9

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
