- Blue Vinyl Vacuum Cup 1.82H x 2.38W x .38B Style K

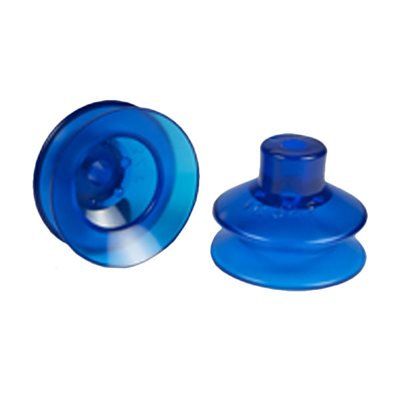

Blue Vinyl Vacuum Cup 1.82H x 2.38W x .38B Style K
Part Number: VC-32F
| Dimensions | in | mm |
| Outer Lip Diameter | 2.38 | 60.5 |
| Mounting Stem I.D. | 0.38 | 9.7 |
| Overall Height | 1.82 | 46.2 |
-
Contact us for pricing
- Availability: Available to Order
| General Information | |
| Material: Vinyl | |
| Mounting Type: Push On | |
| Bellows: 1 | Suggested Use: Label Placement |
 | Style K Dimensions | in | mm |
| Dimension A | 2.38 | 60.5 | |
| Dimension B | 1.82 | 46.2 | |
| Dimension C | 1.2 | 30.5 | |
| Dimension D | 1 | 25.4 | |
| Dimension F | 0.38 | 9.7 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
