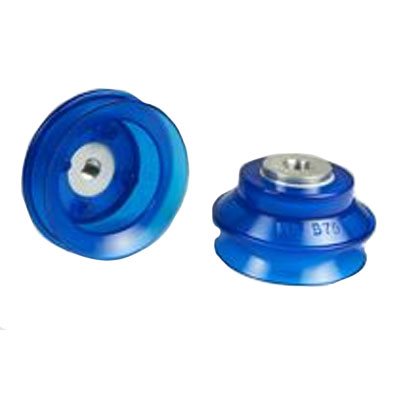

Blue Vinyl Vacuum Cup 1.82H x 3.09W w/Threaded Insert Style M
Part Number: VC-B75
| Dimensions | in | mm |
| Outer Lip Diameter | 3.09 | 78.5 |
| Overall Height | 1.82 | 46.2 |
-
Contact us for pricing
- Availability: Available to Order
| General Information | |
| Material: Vinyl | Thread Size: Specify |
| Mounting Type: Threaded | Cleats: Yes |
| Bellows: 1 | Suggested Use: Uneven Surface |
 | Style M Dimensions | in | mm |
| Dimension A | 3.09 | 78.5 | |
| Dimension B | 1.82 | 46.2 | |
| Dimension C | 0.18 | 4.6 | |
| Dimension D | 2.29 | 58.2 | |
| Dimension E | 2.21 | 56.1 | |
| Dimension H | 0.73 | 18.5 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
