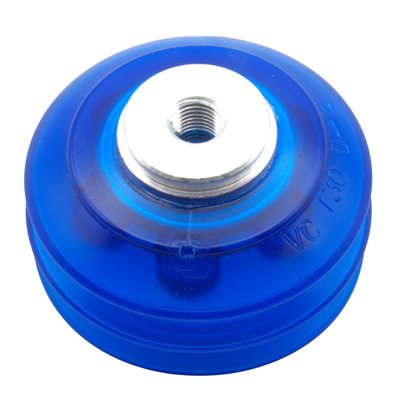

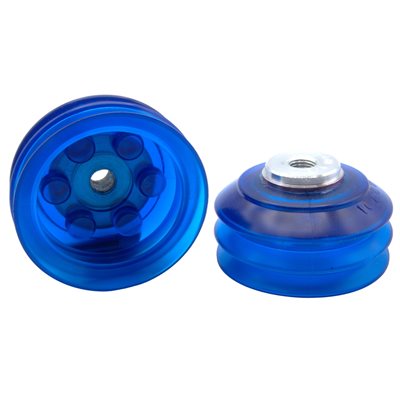

Blue Vinyl Vacuum Cup 1.84H x 3.31W w/Threaded Insert Style M
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.84H x 3.31W w/Threaded Insert Style M

Part Number: VC-130-D2

$22.10 /EACH
List price: $22.10 /EACH
    • EACH
  • Availability: Available to Order
 Dimensions in mm
Outer Lip Diameter 3.31 84.1
Overall Height 1.84 46.7

 General Information
 Material: Vinyl  Thread Size: Specify
 Mounting Type: Threaded  Cleats: NYes
 Bellows: 2  Suggested Use: Uneven Surface

   Style M Dimensions in mm
 Dimension A  3.31 84.1
 Dimension B 1.84 46.7
 Dimension C 1.35 34.3
 Dimension D 2.42 61.5
 Dimension E 2.5 63.5
 Dimension H 0.79 20.1

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
