- Blue Vinyl Vacuum Cup .53H x .5W x .13B Style C

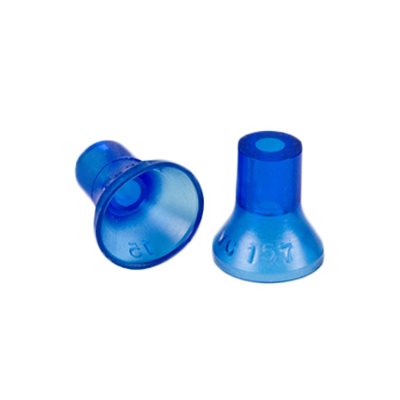

Blue Vinyl Vacuum Cup .53H x .5W x .13B Style C
Part Number: VC-157
| Dimensions | in | mm |
| Outer Lip Diameter | 0.5 | 12.7 |
| Mounting Stem ID | 0.13 | 3.3 |
| Overall Height | 0.53 | 13.5 |
-
Contact us for pricing
- Availability: Available to Order
| General Information | |
| Material: Vinyl | |
| Mounting Type: Push on | Cleats: No |
| Bellows: 0 | Suggested Use: Carton Feeding |
 | Style C Dimensions | in | mm |
| Dimension A | 0.5 | 12.7 | |
| Dimension B | 0.53 | 13.5 | |
| Dimension C | 0.25 | 6.4 | |
| Dimension D | 0.28 | 7.1 | |
| Dimension E | 0.13 | 3.3 | |
| Dimension F | 0.13 | 3.3 | |
| Dimension H | 0.28 | 7.1 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
