Blue Vinyl Vacuum Cup .75H x .87W x .28B Style I
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

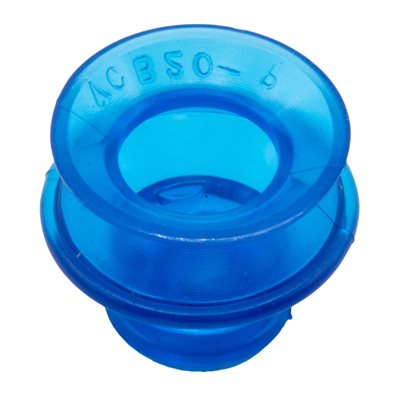

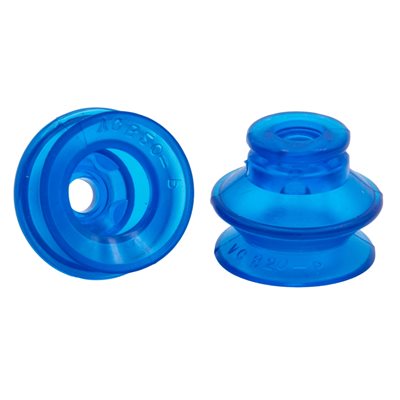

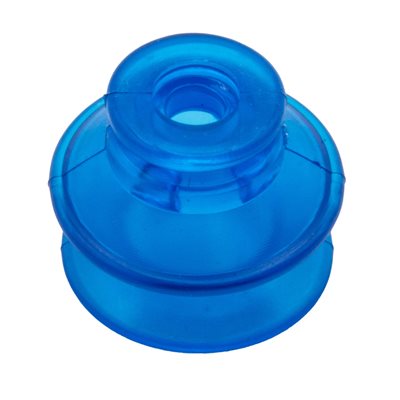

Blue Vinyl Vacuum Cup .75H x .87W x .28B Style I

Part Number: VC-B20P

 Dimensions in mm
Outer Lip Diameter 0.87 22.1
Mounting Stem I.D. 0.23 5.5
Overall Height 0.75 19.1
1x $5.67 /EACH
25x $5.40 /EACH
50x $4.86 /EACH
100x $4.17 /EACH
200x $3.49 /EACH
List price : $5.67 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Flange
 Bellows: 1  Suggested Use: Label Placement

   Style I Dimensions in mm
 Dimension A  0.87 22.1
 Dimension B 0.75 19.1
 Dimension C 0.48 12.2
 Dimension E 0.23 5.5
 Dimension F 0.56 14.2
 Dimension F1 0.07 1.8

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
