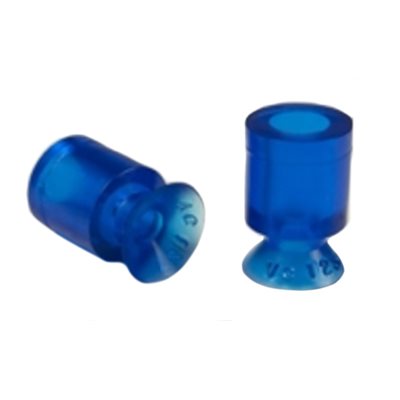

Blue Vinyl Vacuum Cup .82H x .56W x .31B Style C
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .82H x .56W x .31B Style C

Part Number: VC-123

$5.07 /EACH
List price: $5.07 /EACH
    • EACH
  • Availability: Available to Order
 Dimensions in mm
Outer Lip Diameter 0.56 14.2
Mounting Stem ID 0.31 7.9
Overall Height 0.82 20.8

 General Information
 Material: Vinyl
 Mounting Type: Push on  Cleats: No
 Bellows: 0  Suggested Use: Carton Feeding

   Style C Dimensions in mm
 Dimension A 0.56 14.2
 Dimension B 0.82 20.8
 Dimension C 0.16 4.1
 Dimension D 0.56 14.2
 Dimension E 0.31 7.9
 Dimension E1 0.48 12.2
Dimension F  0.19 4.8
 Dimension H 0.12 3

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
