| General Information | |
| Material: Vinyl | Thread Size: N/A |
| Mounting Type: Push On | Cleats: No |
| Bellows: 0 | Suggested Use: Carton Feeding |

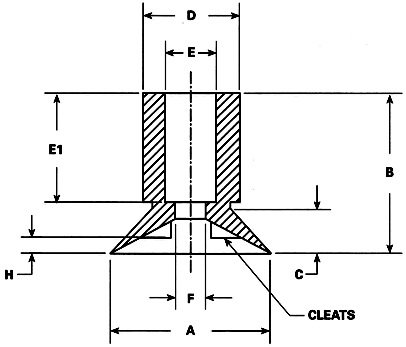

 | Style K Dimensions | in | mm |
| Dimension A | 1.69 | 42.9 | |
| Dimension B | 0.72 | 18.3 | |
| Dimension C | 0.34 | 8.6 | |
| Dimension D | 0.72 | 18.3 | |
| Dimension E | 0.38 | 9.7 | |
| Dimension E1 | 0.43 | 10.9 | |
| Dimension F | 0.52 | 13.2 | |
| Dimension H | 0.2 | 5.1 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
