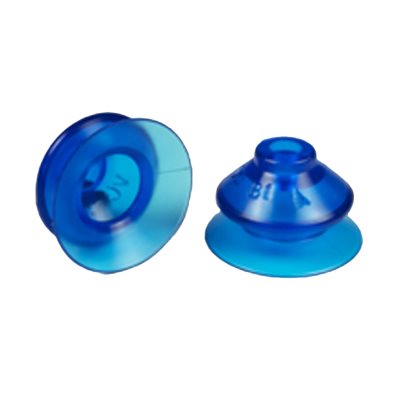

Blue Vinyl Vacuum Cup .91H x 1.38W x .28B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .91H x 1.38W x .28B Style K

Part Number: VC-B1A

 Dimensions in mm
Outer Lip Diameter 1.38 35.1
 Mounting Stem I.D. 0.28 7.1
Overall Height 0.91 23.1

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push On
 Bellows:    Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A 1.38 35.1
 Dimension B 0.91 23.1
 Dimension C 0.77 19.6
 Dimension D 0.53 13.5
Dimension F 0.28 7.1

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
