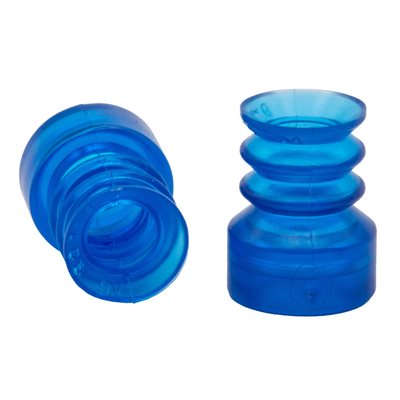

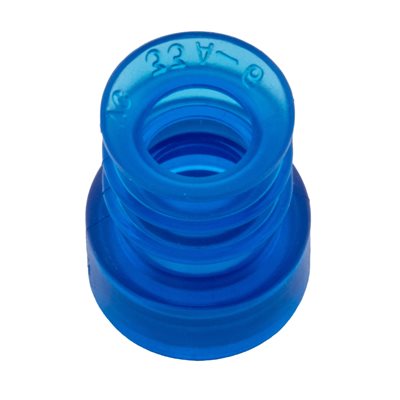

Blue Vinyl Vacuum Cup .98H x .62W x .42B Style H
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .98H x .62W x .42B Style H

Part Number: VC-33A-6

 Dimensions in mm
Outer Lip Diameter 0.62 15.7
Mounting Stem I.D. 0.42 10.7
Overall Height 0.98 24.9
$6.00 /EACH
List price: $6.00 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Snap Over
 Bellows: 2  Suggested Use: Uneven Surface

   Style H Dimensions in mm
 Dimension A  0.62 15.7
 Dimension B 0.98 24.9
 Dimension C 0.64 16.3
 Dimension D 0.73 18.5
 Dimension E 0.56 14.2
 Dimension E1 0.06 1.5
 Dimension F 0.42 10.7

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
