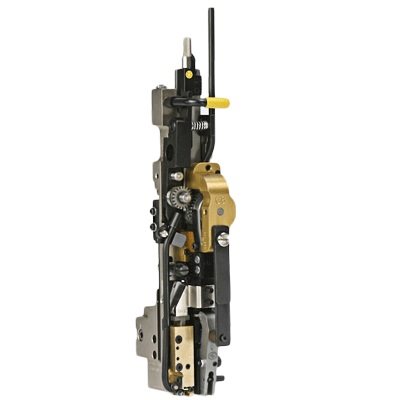

Stitcher Head Assembly

Part Number: G8HD24A
The G8 Head features a side-feed design, eliminating the need for a Swivel, dramatically increasing the reliability of this head and can be used on virtually any stitcher or collator which uses Deluxe Stitcher, ISP/Interlake, 26 Heads or Hohner 52/8, and 48/5 Heads.
$2,120.00 /EACH
Stitcher Head Assembly
Stitcher Head Assembly - Heidelberg
Stitcher Head Assembly - M17
EACH
Online Availability
Available to Order
Description Parts Finder

Specifications

Technical Data
Max Capacity: 2 sheets to 5/16"
Crown Width: 1/2"
Wire Sizes: 24 gauge round
Minimum Center-to-Center: 2-3/64"
Speed: 20,000 stitches / hour
Machines: Rosback



Documents


G8 Operators Manual

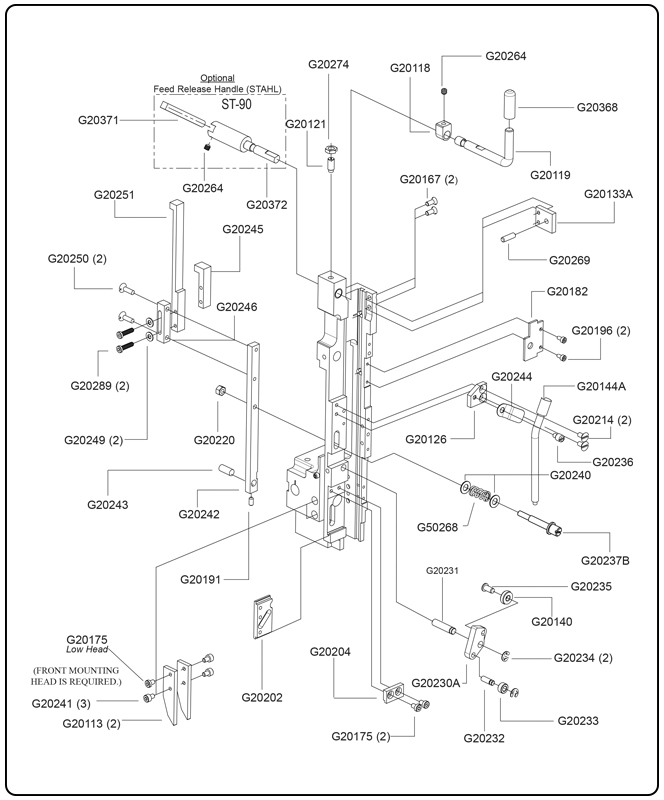

Bonnet Sub-Assembly (Figure 1)

Click part numbers in the diagram for product pages

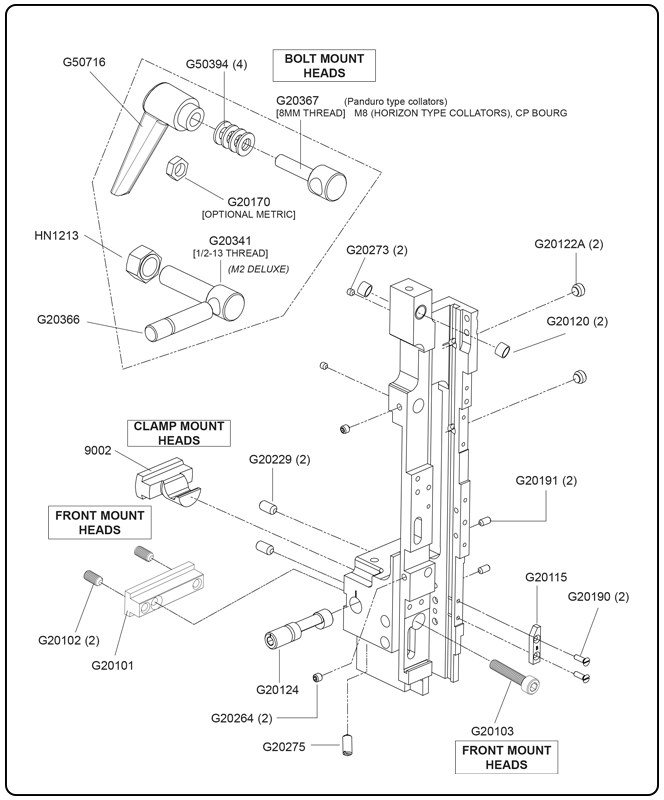

Bonnet Sub-Assembly (Figure 2)

Click part numbers in the diagram for product pages

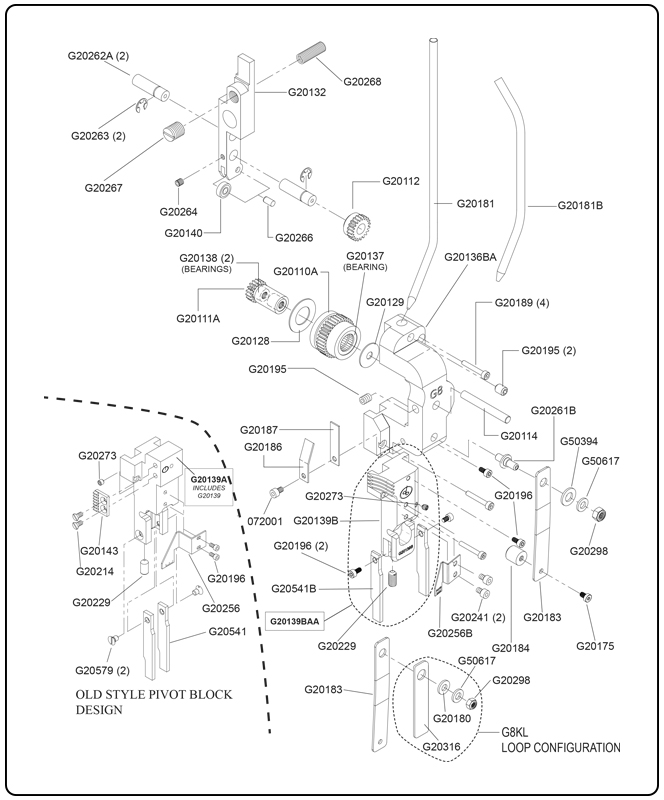

Feed Lever and Feed Gear Assemblies

Click part numbers in the diagram for product pages

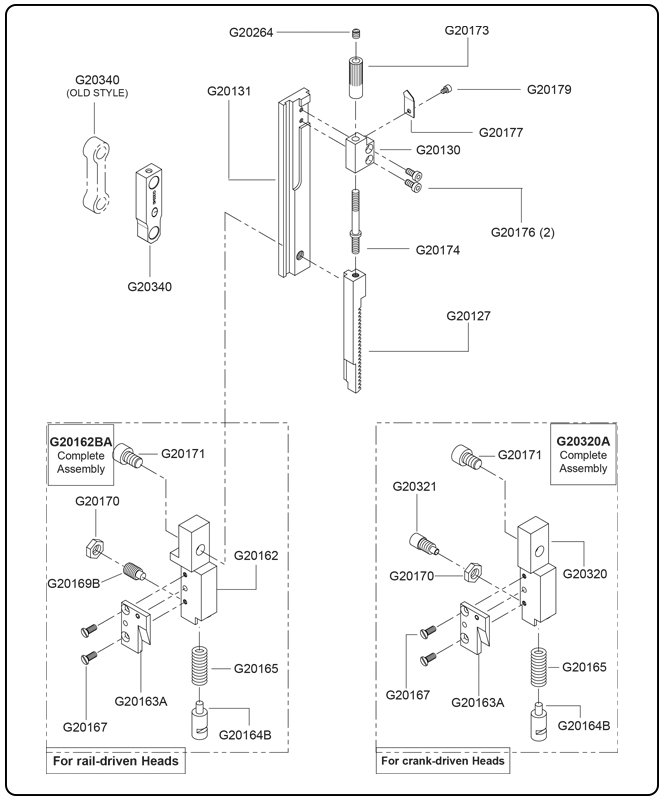

Driving and Feed Slide Assemblies

Click part numbers in the diagram for product pages

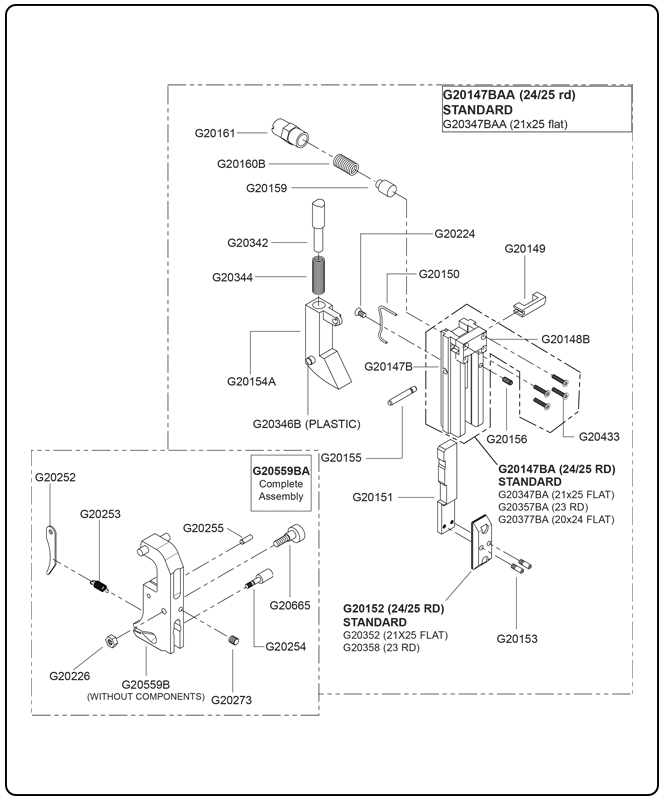

Bender Bar and Wire Holder Assemblies

Click part numbers in the diagram for product pages

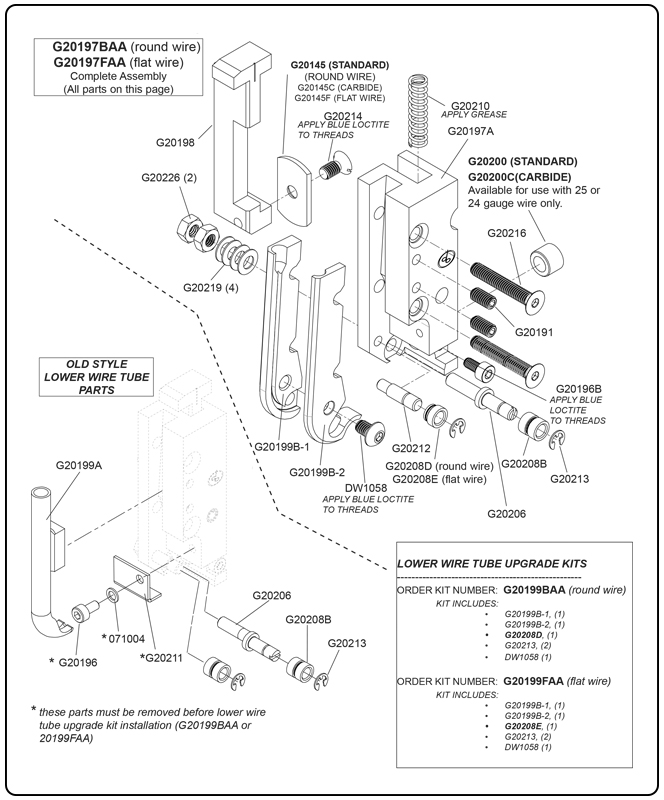

Cutter Box Assembly

Click part numbers in the diagram for product pages

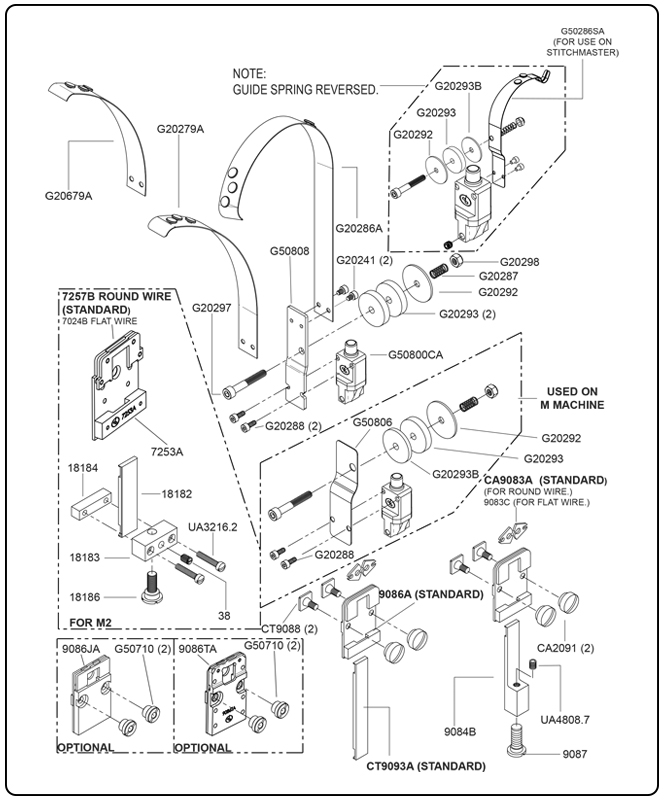

Wire Guide Bracket, Spring and Clincher Plate

Click part numbers in the diagram for product pages
