Features
• Designed to seal most polyolefin, polyethylene, and PVC* shrink films
• All-welded main frame from 12 gauge steel
• Live roller or stainless steel mesh belt conveyors
• Sealed bearings (not bushings) on drive and idler shafts
• Adjustable digital solid state temperature control for a variety of films
• Four-directional air flow provides positive shrinking
• Variable air flow and air velocity for a variety of products and applications
• Bottom air flow adjustment - full on, 1/2 on, full of on ET2010
• Large ducting creates more air volume inside tunnel
• Optional side plates (tops and sides) for air flow patterning and quick changeover for different products on ET2010
• Plugs available for patterned air flow
• Delayed cool down and over temperature protection
• Fold down electrical control panel for easy maintenance
• Conveyor speed up to 67 feet per minute
• Heavy duty casters for transportation within plant
• Leveling legs provide sturdy base once in place
• Custom two part epoxy finish resists scratching
• Available in 220V - single or 3-phase
• Easy to use design requires minimal training, maintenance, and trouble-free operation
Specifications
| Specifications |
| Tunnel Chamber Dimensions: | 16" W x 8" H x 30" L |
| Machine Dimensions: | 29"W x 49"H x 40"L |
| Conveyer Dimensions: | 16" W x 40" L |
| Accepted Films: | Polyolefin, Polyethylene, and PVC |
| Belt Type: | Stainless Steel Mesh Belt |
| Power: | 220V, Single Phase, 40 Amp |
Weight:
| 650 lbs. |
| Shipping Weight: | 750 lbs. |

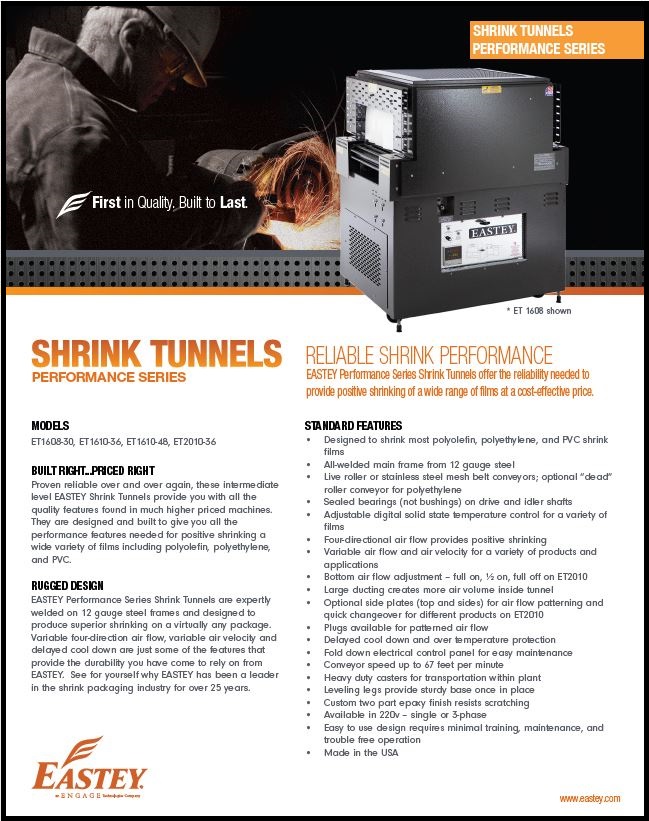

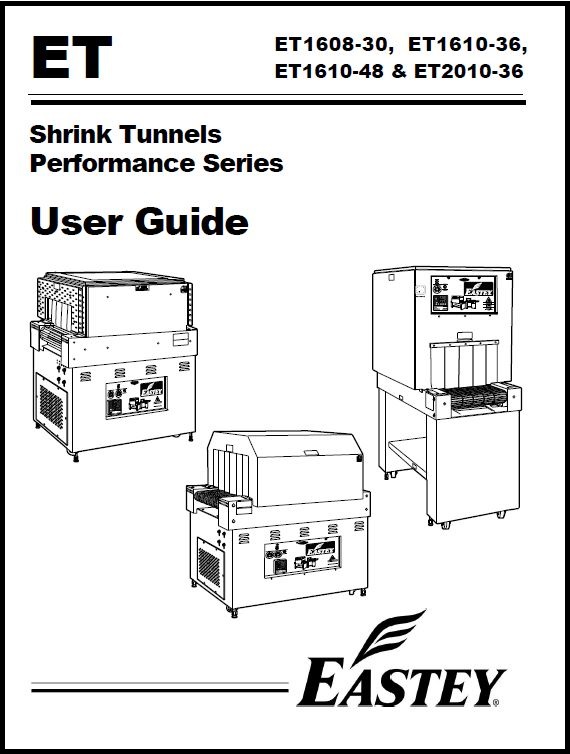

Documents
