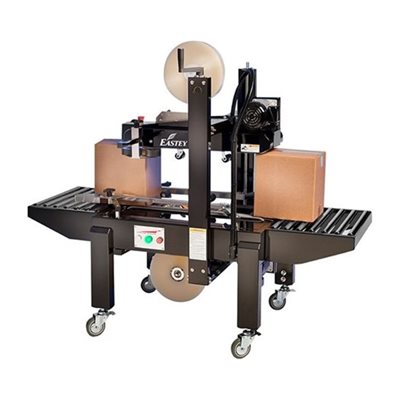

Eastey TB-3EX Top & Bottom Belt Case Taper w/ 3 in. Tape Head

Part Number: 5001659

The TB-2 top and bottom belt case taper is user-friendly and designed for high-volume case sealing. It's perfect for tall, narrow, and heavy cases up to 85 lbs, and operates without the need for compressed air, allowing placement anywhere in the facility.

The system uses four drive belts to consistently transport cases for a durable and even seal. Featuring a dual mast with twin lead screws, the TB-2 ensures stable tape head operation and has adjustable side guides to accurately align each case. Additionally, top compression rollers help secure and align overfilled case flaps, providing an efficient alternative to manual taping.

The TB-2 allows for quick and effortless case size changes, accommodating boxes starting from 5 inches in length. On-the-fly adjustments are facilitated by simple hand-tightening knobs and cranks. It employs the Easy-Taper Quick-Load system for both top and bottom tape cartridges, capable of sealing boxes as narrow as 6 inches wide and as short as 4.5 inches tall.

$4,995.00 /EACH
List price: $4,995.00 /EACH
    • EACH
  • Availability: Available to Order


• Utilizes Eastey’s Easy-Taper tape head
• Dual mast for tape head stability
• Top compression rollers
• Front and rear roller pack tables
• Plug-in and go operation
• Powder coated 12 gauge steel
• Adjustable side guides
• Fast and easy box size changes
• Low maintenance
• Casters for transportation within plant


Sealer Type:  Uniform top and bottom belt, top and bottom case sealer
Machine Materials:  Industrial strength 12 gauge steel, powder coated
Belt Speed  75 feet/minute
Tape Speed:  30 cases/minute (depending on box size)
Height:   Adjustable from 24.3" to 32.3" conveyer heights
Minimum Box Size:  5" Length x 6" Width x 4.5" Depth
Maximum Box Size:  Infinite Length x 19.5" Width x 19.5" Depth
Tape Size:  2" wide pressure sensitive tape (3" optional), 15" diameter rolls
Air Requirements:  None
Electrical:  110 VAC, 60 Hz, 6A
