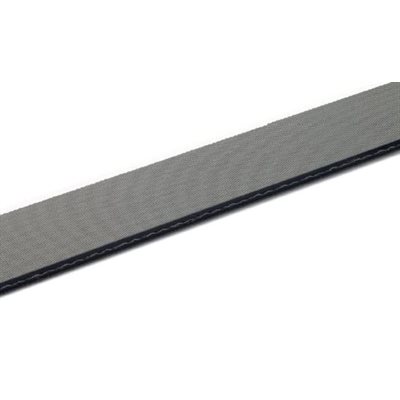

CT-18/40E Polyester Folder Gluer Belt 3/4"

Name: CT-18/40E Polyester Folder Gluer Belt 3/4"
Brand: Habasit
SKU: CT-18/40E-3/4
Price: 5.81 USD
Availability: InStock

Part Number: CT-18/40E-3/4

Main Industry Segments: Cardboard converting, Paper manufacturing and processing

Applications: Folder-gluer belt

Special Features: Abrasion resistant, adhesive-free joint, constant coefficient of friction, dimensionally stable longitudinal flexibility, outstanding flex-fatigue

$5.81 /PER FOOT

CT-18/40E Polyester Folder Gluer Belt 1/2"

CT-18/40E Polyester Folder Gluer Belt 1"

Belting Thickness (mm) 4.00mm
Belting Joining Method Flexproof

Qty

PER FOOT

Online Availability

Available to Order

Description

Specifications

Product Construction
Conveying Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface:	Rough Structure
Conveying Side Property:	Adhesive
Conveying Side Color:	Gray
Traction Layer:	Polyester (PET)
Number of Fabrics:	1
Pulley Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Pulley Side Surface:	Rough Structure
Pulley Side Property:	Adhesive
Pulley Side Color:	Gray

Product Data
Joining Method:	Flexproof
Belt Thickness:	4mm (0.16 in)
Tensile Force (1% elongation/unit of width):	18 N/mm (103 lbf/in)
Min. Operating Temp:	0°C (32°F)
Max Operating Temp:	60°C (140°F)
Min Pulley Diameter:	40mm (1.57 in)
