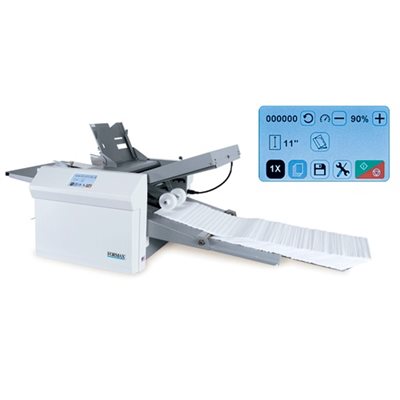

Formax FD-38Xi Folder

The Formax FD 38Xi Fully-Automatic Touchscreen Paper Folder delivers high-speed, precision folding with a 500-sheet capacity and speeds of up to 17,000 pieces per hour, all controlled via an intuitive full-color touchscreen. With 18 pre-programmed folds, 36 customizable settings, and optional add-ons like a Multi-Sheet Feeder and Vertical Stacker, it offers unmatched versatility and efficiency for high-volume document processing.

Features

• Folds up to 17,000 sheets per hour

• Automatic touchscreen paper folder

• 18 pre-programmed fold settings

• AutoBatch feature for set processing

• Full-color touchscreen control panel

• 500-sheet hopper capacity

• 36 custom fold memory

• Telescoping conveyor system

• Cross-folding capability

• Compatible with V-Stack36i Vertical Stacker

• Easy-off feed wheel shaft

• Stapled and unstapled sheet folding

• Seven-point fold stops for accuracy

• Removable roller cover for easy access

Specifications

Technical Data
Hopper Capacity:	Up to 500 sheets 20# (75 gsm)
Speed:	Up to 17,00 sheets per hour
Paper Size:	Min: 3.5" W x 5" L Max: 12.25" W x 18" L
Pre-Marked Folds:	C, V, Z, Gate, Fold Out, and Double Parallel
Dimensions:	Closed: 33" L x 20" W x 19" H Fully Extended: 60"L x 20" W x 19" H
Weight:	73 lbs
Custom Folds:	Up to 36
Power:	110-240V AC, 50/60Hz
Safety Certifications:	UL & CE approved



Documents

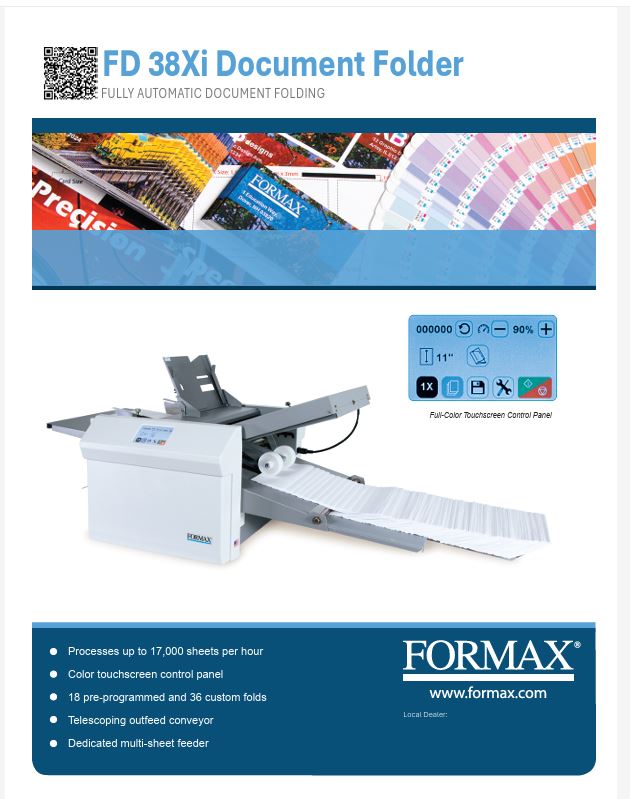

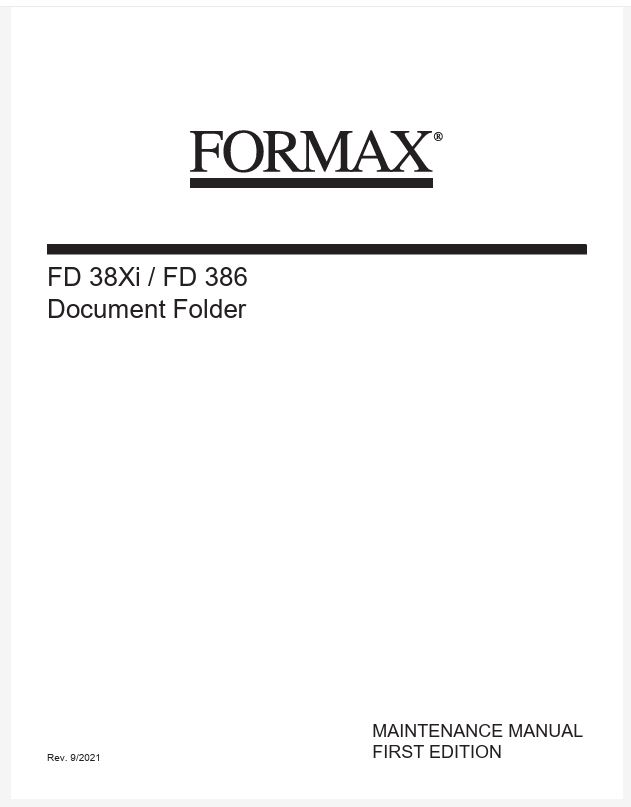

Spec Sheet	User Manual	Parts Manual
