Hydraulic Programmable 28" Guillotine Paper Cutter
Part Number: CUT-TRUE-31H
The Cut-True 31H a compact tabletop guillotine cutter that promises professional grade results
28" cutting width, 4" stack height 0.1mm cutting accuracy
Ideal for digital prints
List price: $30,110.00 /EACH
- Availability: Available to Order

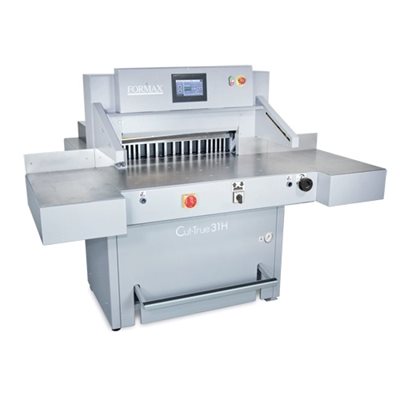

The Formax Cut-True 31H Hydraulic Guillotine Paper Cutter delivers high-precision, heavy-duty cutting for paper stacks up to 28" wide, with features like a hydraulic blade/clamp drive, air-assisted deck, and LED cutting line for smooth, accurate operation. Its user-friendly touchscreen, job memory, and advanced safety systems make it ideal for high-volume print shops seeking efficiency, precision, and professional-quality results.
Features
• Hydraulic blade and clamp drive
• Color touchscreen control panel
• LED cutting line for precision
• Foot-pedal pre-clamp
• 0.1mm cutting accuracy
• Air-assist ball deck
• Adjustable hydraulic clamp pressure
• Removable false clamp
• Infrared safety curtain
• Automatic blade return
• Internal light in cutting area
• Extra-large side tables
• Electronic back gauge fine-tuning
• Business card cutting mode
• Ideal for digital print shops
Specifications
| Technical Data | |
|---|---|
| Cutting Action: | Dual-button hydraulic |
| Max Cutting Width: | 28.7" |
| Max Paper Stack Height: | 3.94" |
| Length Behind Blade: | 26.5" |
| Length in Front of Blade: | 25" |
| Programmable Jobs: | Up to 100 jobs with 100 steps |
| Min. Cut: | 1.18" (w/o false clamp) 2.36" (w/ false clamp) |
| Clamp Style: | Automatic, hydraulic |
| Back Gauge Adjustment: | Electronic back gauge switch |
| Table Size: | 43.12" W x 21.125" D (w/o side tables) 72.75" W x 21.125" D (w/ side tables) |
| Dimensions: | 73" W x 69" H x 53.25" D |
| Blade Change Safety Tool: | Included |
| Hydraulic Clamp Pressure: | 700 - 4,500 psi |
| Weight: | 1,323 lbs |
| Power Supply: | 208V, 60Hz, 30A dedicated line |
Documents
 |  |  |

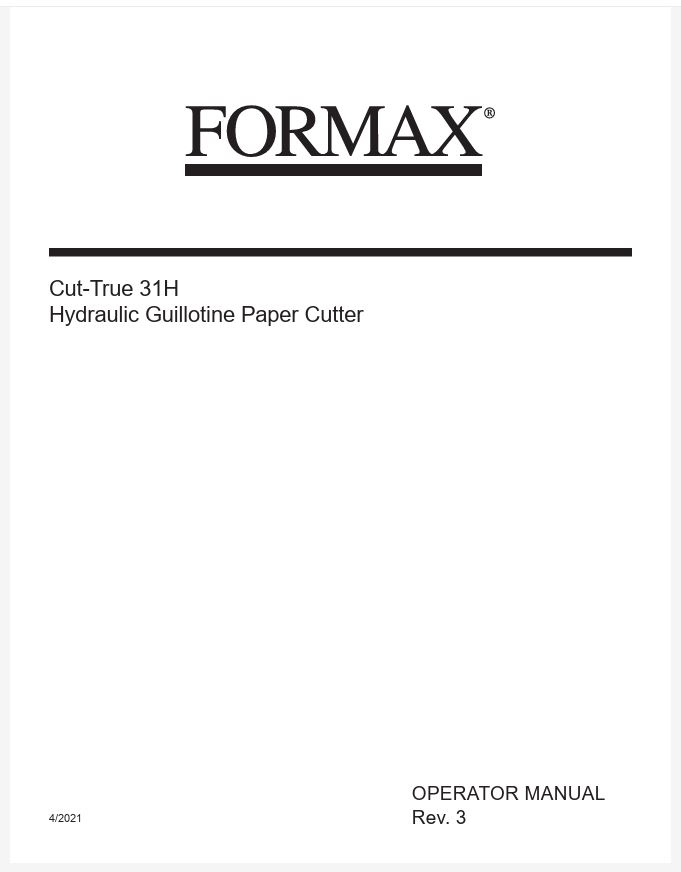

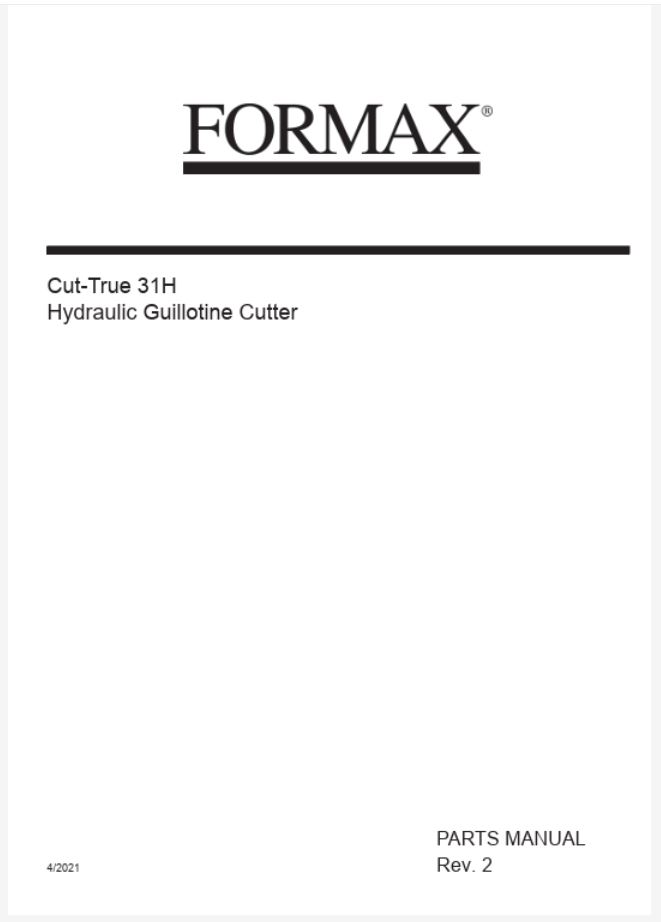

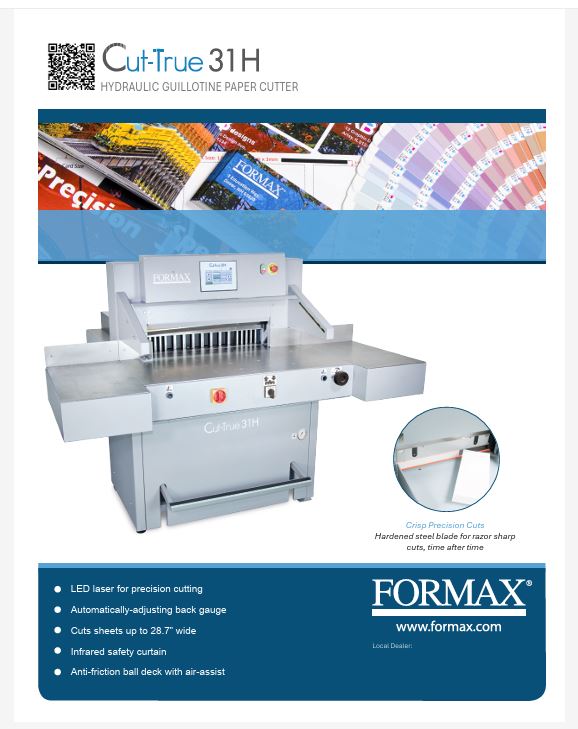

| Spec Sheet | User Manual | Parts Manual |
