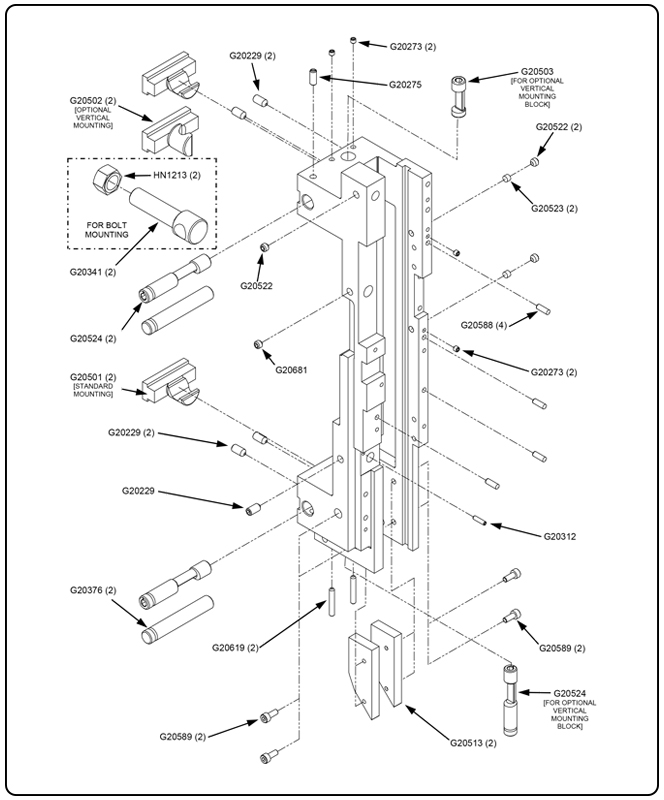

Bonnet Sub-Assembly (Figure 1)

Click part numbers in the diagram for product pages

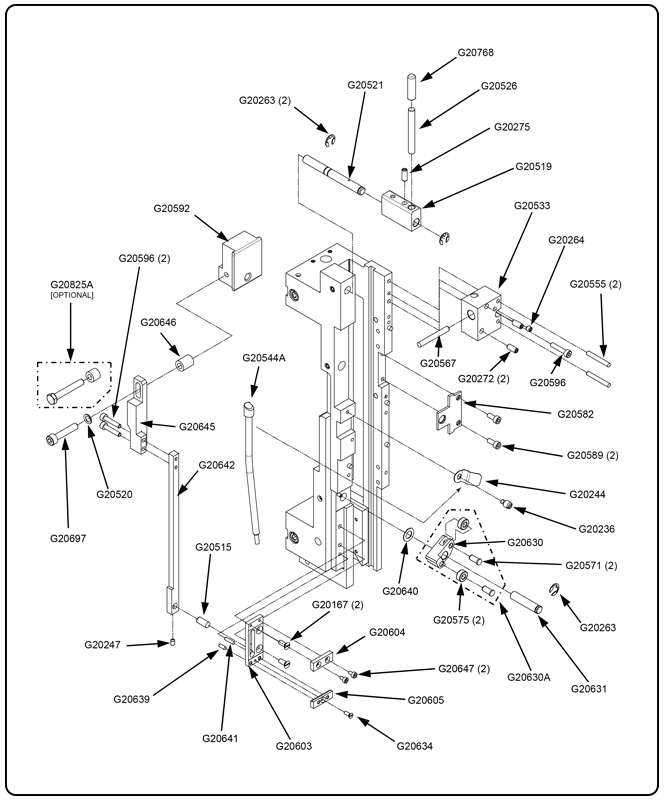

Bonnet Sub-Assembly (Figure 2)

Click part numbers in the diagram for product pages

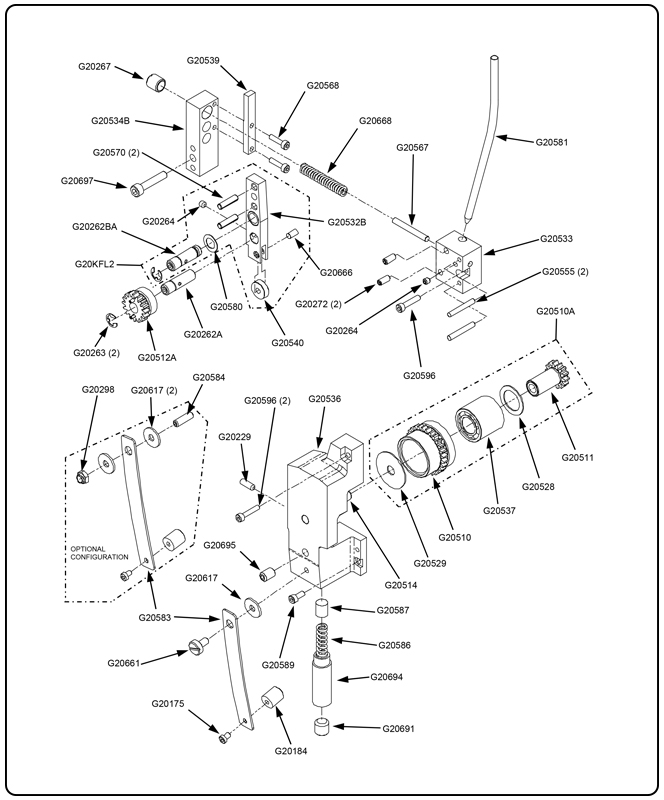

Feed Lever and Feed Gear Assemblies

Click part numbers in the diagram for product pages

Driving and Feed Slide Assemblies

Click part numbers in the diagram for product pages

Driving and Feed Slide Assemblies (Figure 2)

Click part numbers in the diagram for product pages

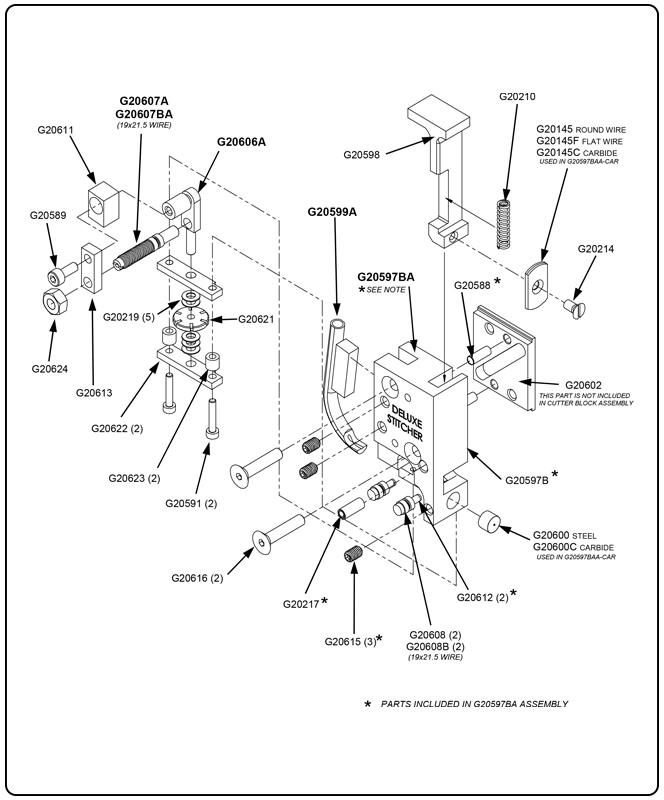

Cutter Block Assembly

Click part numbers in the diagram for product pages

Wire Guide Bracket, Spring and Clincher Plate Assemblies

Click part numbers in the diagram for product pages

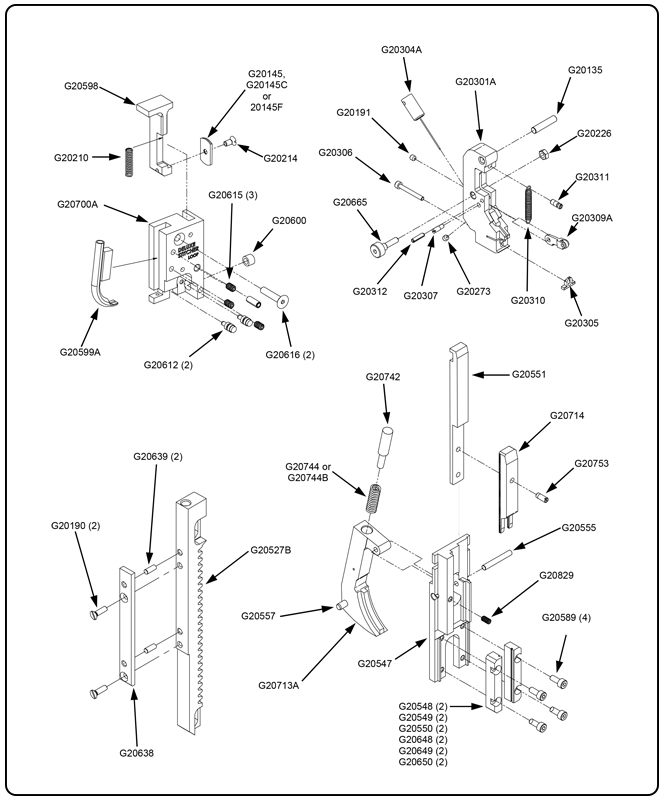

Loop Stitch Assemblies

Click part numbers in the diagram for product pages
