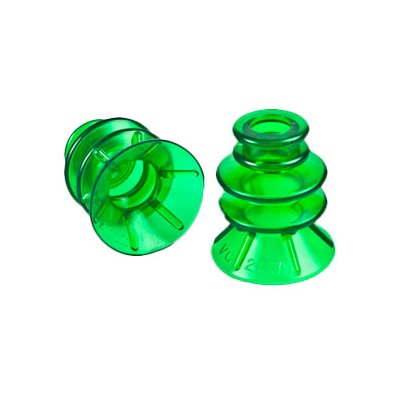

| General Information | |
| Material: Vinyl | |
| Mounting Type: Flange | |
| Bellows: 2 | Suggested Use: Label Placement |
 | Style I Dimensions | in | mm |
| Dimension A | 2.28 | 57.9 | |
| Dimension B | 2.6 | 66 | |
| Dimension C | 1.95 | 49.5 | |
| Dimension D | 0.7 | 17.8 | |
| Dimension E | 0.7 | 17.8 | |
| Dimension F | 1.35 | 34.3 | |
| Dimension F1 | 0.18 | 4.6 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
