Habasit Flexproof Cooling Tongs 60mm (120mm Fingers)
Double-tap and hold to zoom.
Mouse over the image to zoom.

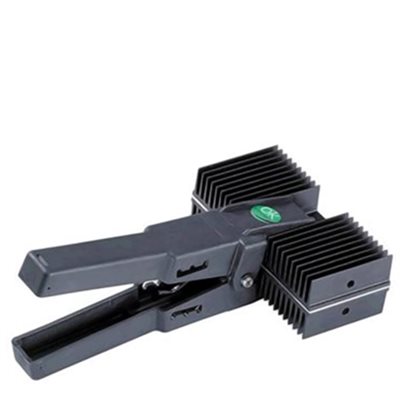

Habasit Flexproof Cooling Tongs 60mm (120mm Fingers)

Part Number: CD-61

Habasit's CD-61 is a cooling tong for Flexproof belt joining.

Checkmark Icon

Compatible with belting up to 60mm wide x 5mm thick

Checkmark Icon

Fits Flexproof finger sizes up to 120mm in length

Checkmark Icon

Equipped with cooling fins to disperse heat efficiently

$429.75 /EACH
List price: $429.75 /EACH
    • EACH
  • Availability: Available to Order

The CD-61 is a cooling tong for use in the Flexproof (120 mm finger) joining system. The belt is joined in a guide rail‚ fixed with two spring clips and welded in a hot pressing device. After welding, the guide rail and belt is transferred to the CD-61 cooling tong to cool the belt down under spring-loaded pressure.

Habasit # H080690040

Specifications

Technical Data
Belt Joint Type: Flexproof
Belt/Tape Max Width: 60mm (2 in)
Belt/Tape Max Thickness: 5mm (0.18 in)
Weight: 0.60 kg (1.32 lbs)
Dimensions (mm): 270 x 150 x 100mm
Dimensions (in.): 10.63" x 5.91" x 3.94"

Documents

You May Also Be Interested In

Habasit Flexproof & Quickmelt Cooling Tongs 60mm (80mm Fingers)
  • $328.70 /EACH
  • List price $328.70 /EACH
  • EACH
  • Availability: In stock

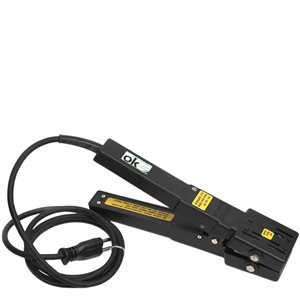

Habasit Flexproof & Quickmelt Hot Pressing Device w/case 50mm
  • $1,683.70 /EACH
  • List price $1,683.70 /EACH
  • EACH
  • Availability: In stock
Habasit Fexproof Finger Cutter 100mm (8 x 30mm fingers)
  • $826.70 /EACH
  • List price $826.70 /EACH
  • EACH
  • Availability: In stock

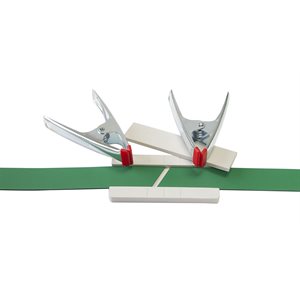

Guide Rail Set 1-1/2"
