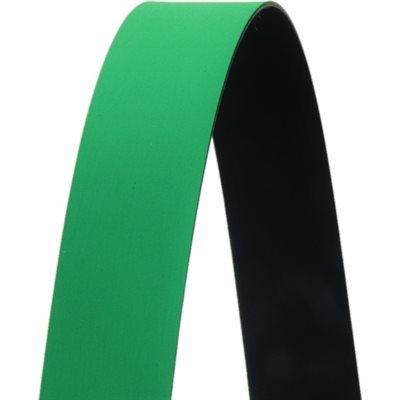

| Product Construction | |
|---|---|
| Conveying Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Conveying Side Surface: | Fine structure |
| Conveying Size Property: | Adhesive |
| Conveying Side Color: | Green |
| Traction Layer Material: | Polyamide (PA) |
| Number of Fabrics: | 1 |
| Pulley Side Material: | Hamid |
| Pulley Side Surface | Smooth |
| Pulley Side Property: | Non-adhesive |
| Pulley Side Color | Black |
| Product Data | |
|---|---|
| Joining Method: | Quickmelt / Flexproof |
| Belt Thickness: | 1.20mm (0.05 in) |
| Anti-Statically Equipped: | Yes |
| Elastic: | Minimal |
| Min Operating Temp: | -20° C (-4° F) |
| Max Operating Temp: | 60° C (140° F) |
| Min Pulley Diameter: | 20mm (.79 in) |
Cutters: AQ-40, AF102, AF-61/6X30, or AF-100/US-80
Heaters: PQ-59, PF-62, PF-100S, or PF-101
Cooling Tongs: CD-60, or CD-61
Guide Rails: GR15
