Habasit Quickmelt Hot Pressing Kit w/case 50mm
Press and move to zoom.
Mouse over image to zoom.

Habasit Quickmelt Hot Pressing Kit w/case 50mm

Part Number: PQ-59K

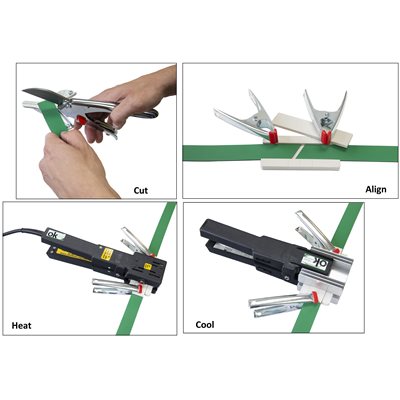

The PQ-59K is used to join machine and spindle tapes using the Quickmelt method. Besides a guide rail, it includes everything you need to start splicing your belts together with ease.

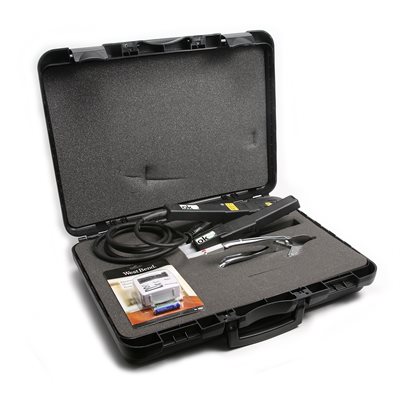

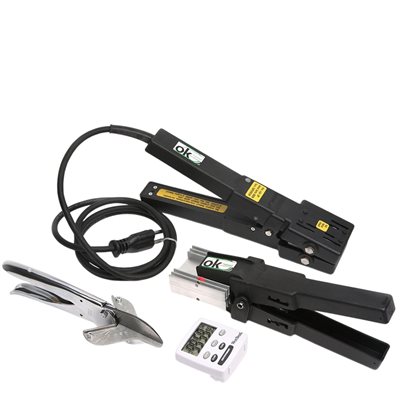

Kit Contents
PQ-59 Heat Press
AQ-40 Cutter
CD-60Cooling Tongs
Timer

Note: In order to join belts with the Flexproof method you will also need the AF102. Guide rail not included.
$1,948.00 /EACH
List price: $1,948.00 /EACH
    • EACH
  • Availability: In stock

PQ-59 Heater

Technical Data
Belt/Tape Max Width:  50mm (2 in.)
Belt/Tape Max Width for joining angle of 75°:  45mm (2 in.)
Belt/Tape Max Thickness:  4mm (.14 in.)
Cooling method: Cooling tongs
Temperature Range:  120°C - 190° C (248°F - 374°F)
Weight: 0.83 kg (1.83 lb)
Power: 1ph 120V 60Hz

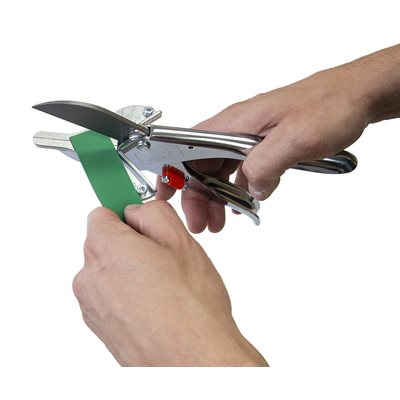

AQ-40 Cutter

Technical Data
Belt/Tape Max Width:  40mm (1.6 in.)
Belt/Tape Max Thickness:  3mm (0.12 in.)
Weight: 0.30 kg (0.66 lb)

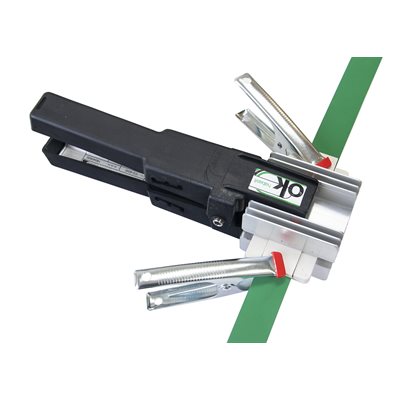

CD-60 Cooling Tongs

Technical Data
Belt/Tape Max Width:  60mm (2 in.)
Belt/Tape Max Thickness:  5mm (0.18 in.)
Weight: 0.50 kg (1.10 lb)
Dimensions: 270 x 60 x 100mm (10.63 x 2.36 x 3.94 in.)




You may also be interested in

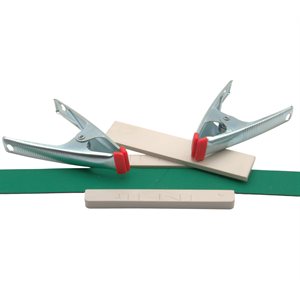

Guide Rail Set
