Hohner Stitching Head, 43/6S for Duplo DBM 250-400

Name: Hohner Stitching Head, 43/6S for Duplo DBM 250-400
Brand: Hohner
SKU: 0541842
Price: 3105.00 USD
Availability: InStock

Part Number: 0541842

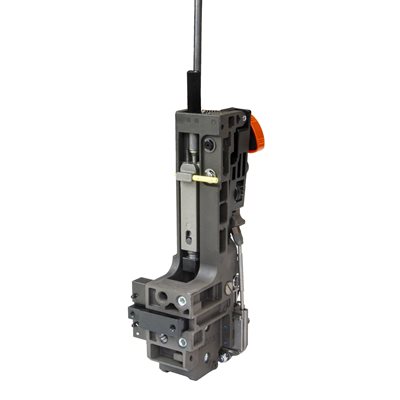

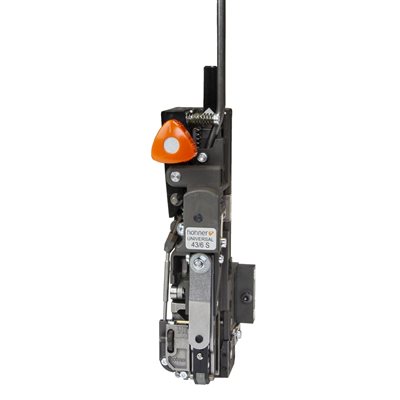

The Hohner 43/6s was designed for an excellent minimum center-to-center stitch distance of 43mm. It is operator friendly, allowing for wire length and thickness adjustments in seconds. The head design now has more wear resistant parts than older models and will last longer between maintenance periods.

Stitcher head includes clincher assembly and wire guide.

$3,105.00 /EACH

Hohner Stitching Head, 43/6S Std. 24-28 Wire

Hohner Stitching Head, 43/6s Loop 6mm

Hohner Stitching Head 43/6S Loop 8mm

Hohner Stitching Head, 43/6S for Duplo DBM 500 24-26 ga.

Hohner Stitching Head, 43/6S for Duplo DBM 500 26-28 ga.

Hohner Stitching Head, 43/6S for Duplo DBM 500, Loop 6mm

Hohner Stitching Head, 43/6S for Duplo DBM 600

Hohner Stitching Head, 43/6S for Heidelberg ST90 / ST100

Hohner Stitching Head, 43/6S w/ Stop Stitch, Loop 6mm

Hohner Stitching Head, 43/6s w/ Stop Stitch, Loop 8mm

Hohner Stitching Head, 43/6S for Horizon Stitchliner SPF30

Hohner Stitching Head, 43/6S for Horizon SPF20 / SPF200

Hohner Stitching Head, 43/6S for C. P. Bourg BDH 26-28 ga.

Hohner Stitching Head, 43/6S Theisen & Bonitz

Qty

EACH

Online Availability

In Stock

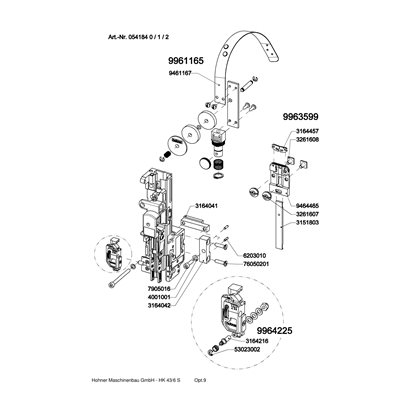

Description Parts Finder

Specifications

Technical Data
Max Capacity:	0.24" (6mm)
Crown Width:	0.47" (12mm)
Wire Sizes:	24-26 gauge
Minimum Center-to-Center:	1.69" (43mm)
Weight:	3 lbs
Stitches per Hour:	Up to 14,000
Machine Model:	Duplo DBM 250-400
