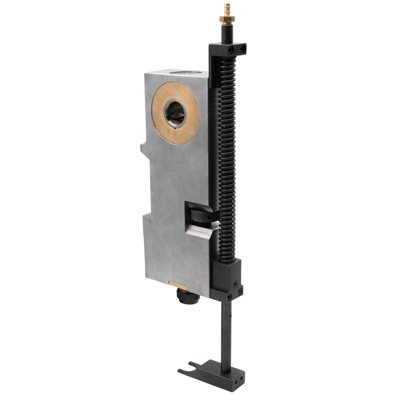

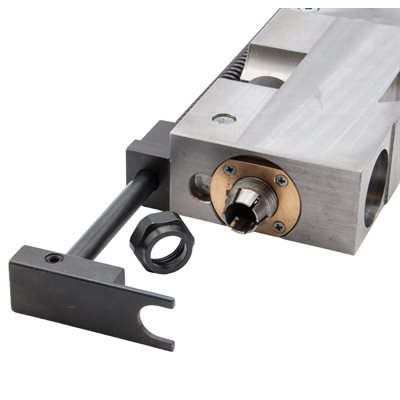

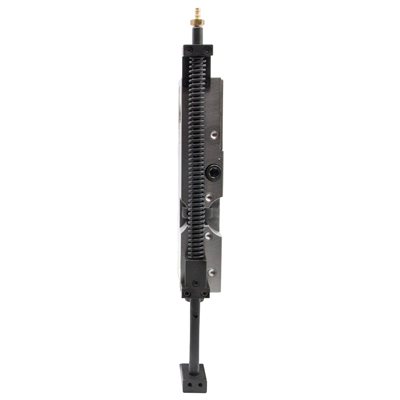

Lawson Drill Head, Right Hand, 3" Drill Capacity

Part Number: DHLAW-RH

Lawson Right-Hand Replacement Drill Head

Compatible with all Dexter-Lawson models including Classic, M, A, and B series

Handles drill diameter sizes from 1/8" to 1/2" diameter

Hex nut drill bit mounting style

Spindle orientation to the left side of the drill head for minimum center-to-center drilling

$1,239.99 /EACH
EACH
Online Availability
In Stock
Parts Finder

Lawson Drill Head Breakdown

Click parts in the diagram for product pages

Flat Head ScrewFlat Head ScrewFlat Head ScrewThrust PlateThrust WasherBevel GearBushingPressure Foot RodPressure Foot SpringSocket Head ScrewPressure Foot BlockThumb ScrewPressure Foot StopSocket Head ScrewPressure Foot BlockPressure Foot with Air HoleFlat Head ScrewTop PlugFlat Head ScrewRight Hand HousingSocket Set ScrewSet ScrewBrass GibGib ScrewAdjusting KnobSocket Set ScrewSocket Set ScrewGrease WickAluminum PlugPinion GearThrust WasherTop Bronze BushingLocknutLock WasherThrust BearingSpringBallAdjusting SleeveThrust WasherSpindleLower BushingFlat Head ScrewFlat Head ScrewCollet AssemblySpring ClipPressure Foot RodPressure Foot SpringSocket Head Cap ScrewUpper BlockExtension PlateFlat Head Socket ScrewPressure Foot StopThumb ScrewPressure Foot BlockSocket Head ScrewPressure Foot with Air HoleSocket Set ScrewSocket Set Screw
