Segmented Glue Roller MBO B26 / B30 / B123 - 16 Page (Unit III)

Mouse over the image to zoom. Double-tap and hold to zoom.

Segmented Glue Roller MBO B26 / B30 / B123 - 16 Page (Unit III)

Part Number: UP2722

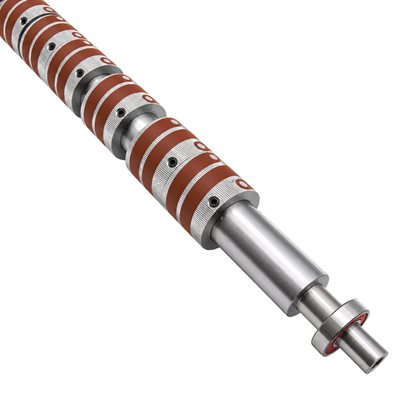

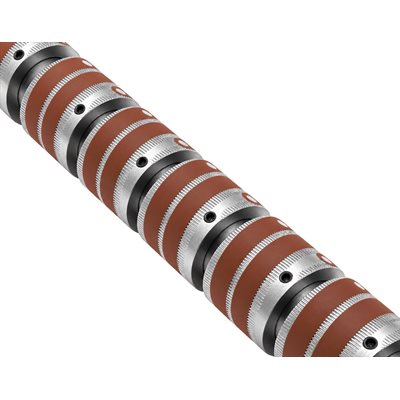

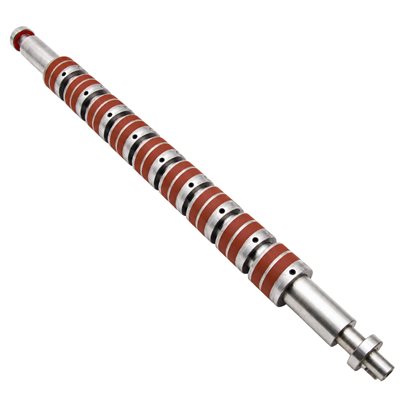

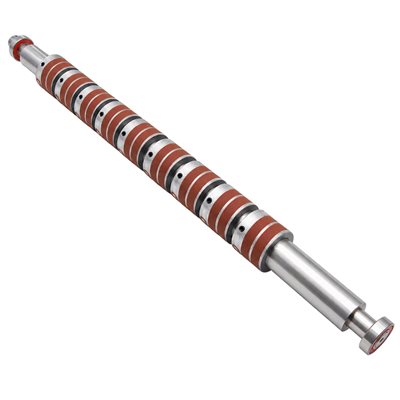

This MBO Segmented Glue Roller is designed for the 16-page (Unit III) sections of MBO B26, B30, and B123 folding machines. Its adjustable glue collars allow precise positioning of glue lines across the sheet for flexible adhesive application.

Compatible Models: MBO B26, B30, and B123 – Unit III (16-Page)

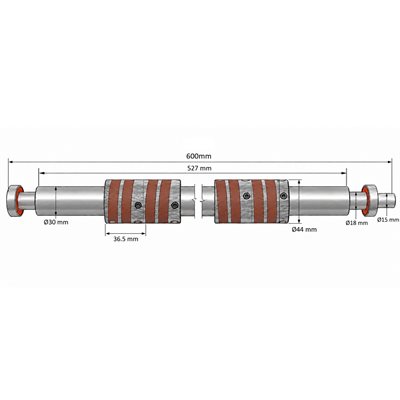

Shaft Diameter: 30mm
Shaft Length: 600mm (approx. 23-5/8")
Includes: (2) UP3187 Bearings and (9) UP3352 Glue Collars
Application: Adjustable glue segments for positioning glue lines at various locations across the sheet

$925.00 /EACH

Machine Model MBO B26
Machine Model MBO B30
Machine Model MBO B123

Availability

In Stock

Description Product Reviews

MBO Segmented Glue Roller – Adjustable Glue Line Positioning

The MBO Segmented Glue Roller is designed for the 16-page (Unit III) sections of MBO B26, B30, and B123 folding machines. Its adjustable glue collars allow operators to position clearance between roller segments wherever adhesive lines are required, providing greater flexibility for folding and gluing applications.

Applications & Benefits

Adjustable Glue Line Positioning: Move individual roller segments to accommodate different adhesive line locations.
Flexible Job Setup: Reposition the collars when changing folding and gluing configurations.
Adhesive Clearance: Properly positioned gaps help prevent freshly applied adhesive from contacting the roller surface.
Bindery Applications: Suitable for compatible inline gluing operations, including certain booklet and signature production jobs.
Serviceable Components: Individual glue collars and bearings are available separately for maintenance and replacement.

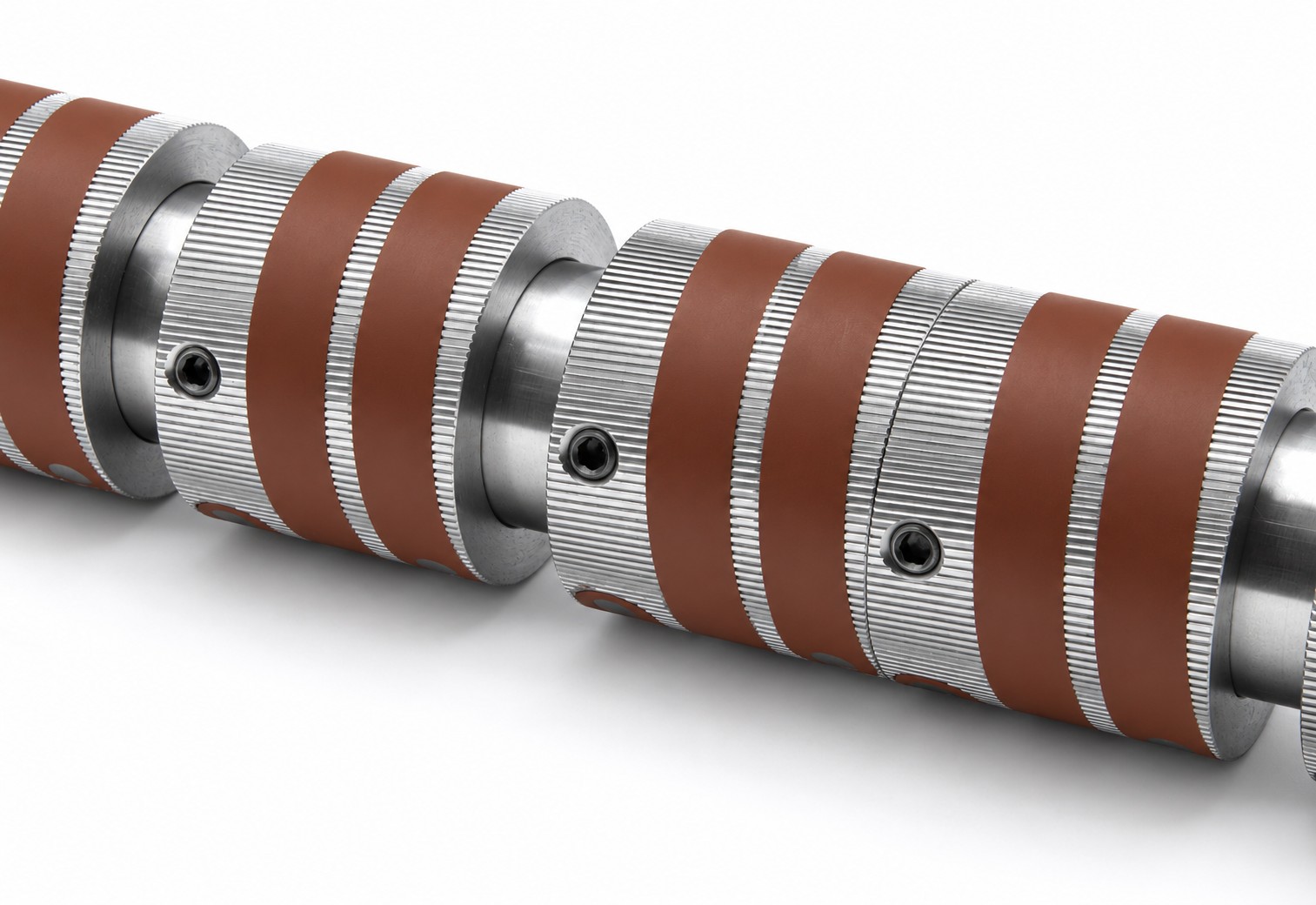

MBO segmented glue roller with adjustable glue collars for folding machine gluing applications

Technical Specifications

Product Type	Segmented Glue Roller Assembly
Compatible Machines	MBO B26, B30 & B123
Folding Unit	Unit III – 16 Page
Shaft Diameter	30mm
Shaft Length	600mm (approx. 23-5/8")
Glue Collars Included	9 – Part # UP3352
Bearings Included	2 – Part # UP3187
Primary Application	Adjustable glue-line clearance for folding and gluing operations

Replacement Parts & Accessories

Individual components are available for maintaining or replacing worn parts on your MBO segmented glue roller assembly.

UP3352 – MBO Glue Roller Segment : Replacement collar used to adjust glue-line clearance and positioning.
UP3187 – Replacement Bearing : Replacement bearing for the segmented glue roller assembly.
UP4222 – Glue Nose Assembly : Attachment to keep adhesive off deflectors and fold plates.
UP5217 – MBO Narrow Glue Roller Segment : Narrow collar measuring less than 1" for closer glue-line placement.

Setup & Maintenance Considerations

Proper roller setup is important for consistent folding and gluingperformance. When adjusting the segmented roller, verify that theclearance between collars corresponds with the intended adhesiveline positions.

Align the gaps between roller segments with the required glue-line locations.
Confirm adequate clearance through the applicable fold plate and roller path to help prevent adhesive smearing.
Inspect glue collars for wear, damage, and secure positioning before operation.
Check bearings for excessive play, noise, or rough rotation during routine maintenance.
Keep roller surfaces free of adhesive buildup and paper debris using cleaning methods appropriate for the roller materials.

Important Compatibility Note

This assembly is intended for the 16-page (Unit III) configuration. Verify your machine model, folding unit, shaft dimensions, and existing gluing arrangement before ordering. Segmented roller installation does not replace the need for a compatible adhesive application system and appropriate fold plate clearance.

Need assistance identifying the correct MBO glue roller or replacement components? Contact Update Ltd at 1-800-229-0009 for help with machine compatibility and available replacement parts.
