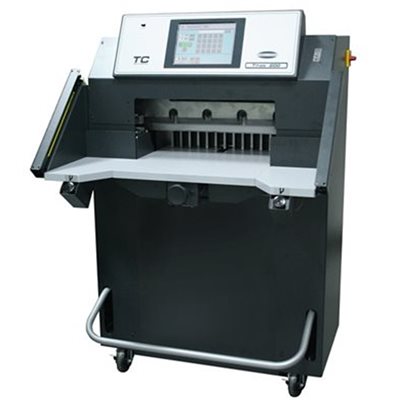

Challenge Titan 200 Paper Cutter with Light Beams & TC System

Part Number: TITAN-200-TC

The Titan 200 is a 20" programmable cutter. This hydraulic-powered, safe, productive, and durable machine fits into almost any budget.

Features & Benefits

• 20” Cutting Width - 3-1/4” clamp opening
• Hydraulic Cutting & Clamping
• Adjustable Clamp Pressure
• LED Line Light Cut Position Indicator
• Cutting Area Protection - Light Beam Curtain
• Plexiglas Rear Table Safety Cover
• Two-Hand Cut Buttons
• Programmable Controlled Backgauge
• Energy Efficient - Motor runs only when cutting
• Heavy Duty Casters For Portability
• Rugged Steel & Cast Iron Construction
• 12” x 19”/ 30.5 cm x 48 cm Side Tables (optional)
• Optional Challenge Exclusive - Ergo-Touch Cut Buttons

Includes: (2) high speed steel knives, (3) plastic cutting sticks, (1) jogging aid, (1) manual, (1) tool kit, & (1) knife change safety holder assembly

$24,200.00 /EACH
List price: $24,200.00 /EACH
    • EACH
  • Availability: Available to Order
 Technical Data
Cutting Width: 20"
Back Gauge Control: Manual
Clamp Opening: 3" - 1/4"
Clamping Force: 1,250 lbs. minimum to 2,500 lbs. maximum
Minimum Cut: 1/2"
Table in Front of Knife: 15" - 1/4"
Table Behind Knife: 20"
Overall Width: 39" - 5/8"
Overall Length: 50" - 7/8"
Overall Height: 53"
Weight: 800 lbs.
Electrical: 1-1/2 HP, single-phase, 60 Hz, 208-230V, AC, 12 Amps, Power cord included
