Polar Pull Arm Assembly (013820, 014128)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Polar Pull Arm Assembly (013820, 014128)

Part Number: PA1025

Pull Arm Assembly/ Knife Draw Arm (Polar #'s 013820, 014128)

Machines: Polar 112 EL, Polar 112 ST, Polar 115 CE, Polar 115 CS, Polar 115 EL, and some of the early Polar 115 EMC paper cutters. ) After approximately 1984 the Polar 115 EMC (sometimes called the EMC I) pull arm style changed to the type that uses a single center shear bolt.

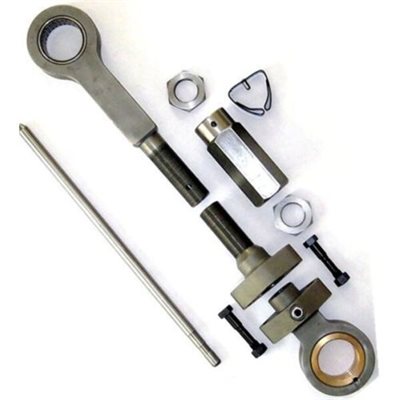

This assembly is supplied as shown in the photo, complete with the following parts:

  • Upper Threaded Arm (209457, 218648, complete with needle bearing 207461)
  • Jam Nut - Left Hand (200609)
  • Turnbuckle Nut (207465)
  • Jam Nut - Right Hand (200608)
  • Safety Clip (206626, 013635, 010635)
  • Lower Threaded Arm (208232, 221716, complete with internal bronze bushing 207058, 221718)
  • Lower Connector (207462, 221715, complete with bronze bushing 205746)
  • Guide Shaft (207463, 218649, 221717, with guide shaft set screw and jam nut)
  • Two Shear Bolts (207466, 221719, complete with shear bolt nuts 205517)
$2,260.00 /EACH
List price: $2,260.00 /EACH
  • Machine Model : Polar 115
    • EACH
  • Availability: Available to Order
