Proline 2004 Total & Batch Counter w/ Retro-Reflective Sensor

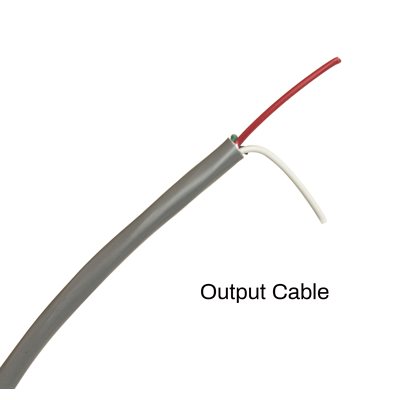

The ProLine PL2004 Batch Counter is the perfect solution for multi-batch counting and tracking total pieces.  With the ability to add two input sensors, you can do multiple batch counts and track total pieces. Up to 2 (NO) outputs allow you to inhibit upstream/downstream devices, or activate tower lamps, alarms, or provide an input to a host controller. The outputs can be configured to latch on until reset or momentarily latch for a set time.  The Batch Counter comes with one input sensor w/ 3m cable and one 3m 2-wire output cable (flying leads). An additional sensor and/or I/O cable can be added optionally.

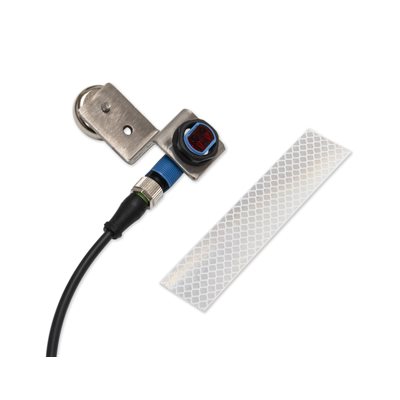

Includes: heavy-duty plastic enclosure, flanges with mounting holes, 3.5" touch-screen, (1) 36" range retro-reflective sensor w/ 3 meter cable, (1) I/O Cable

Options: Additional input sensor (diffuse, reflective, and more), adjustable sensor mount with clamp and magnet, patch cable extensions and additional output cable (contact for pricing).
