Habasit Flexproof Hot Press 60mm

Part Number: PF-62

The PF-62 is a hot-pressing device for Flexproof joining of Habasit power transmission belts made of thermoplastics. With cooling tong CD-61 and an adjustable guide rail set you have a joining system that enables you to exchange a belt within minutes. The wide press plate allows making 10/120 mm Flexproof finger joints for optimal strength also in situations where space is tight and visibility is poor. The PF-62 is suitable mainly for on-site joining. New features of PF-62 are a status indication (LED display) and an overheating protection which provides an improved tool reliability. Thanks to this new control unit it is now possible to enter the temperature in a range between 120°C to 190°C.

Habasit # H088000409

$1,848.00 /EACH
List price: $1,848.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Belt/Tape Max Width:  60mm (2 in.)
Belt/Tape Max Width for joining angle of 75°:  20mm (0.8 in.)
Belt/Tape Max Width for joining angle of 60°:  15mm (0.6 in.)
Belt/Tape Max Thickness:  5mm (0.18 in.)
Cooling method: Cooling Tongs
Temperature Range: min 120°C    248°F
max 190°C    374°F
Weight: 1.80 kg (4.00 lb)
Power: 1ph 120V 60Hz @ 500W

Documents

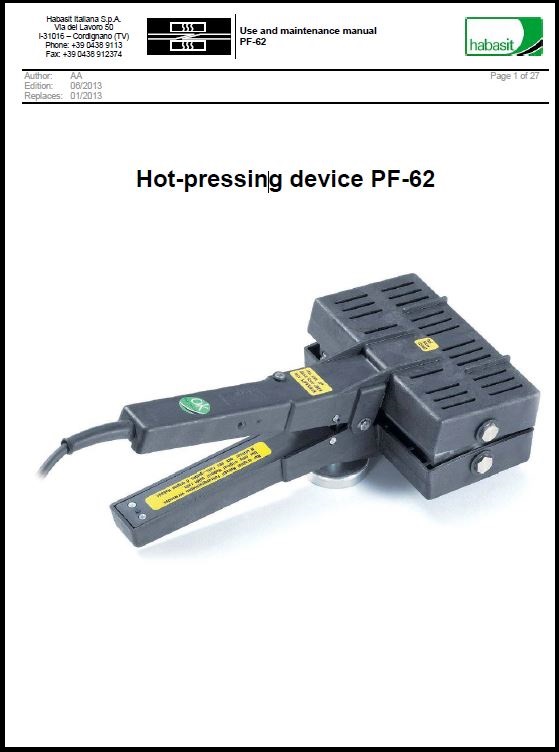

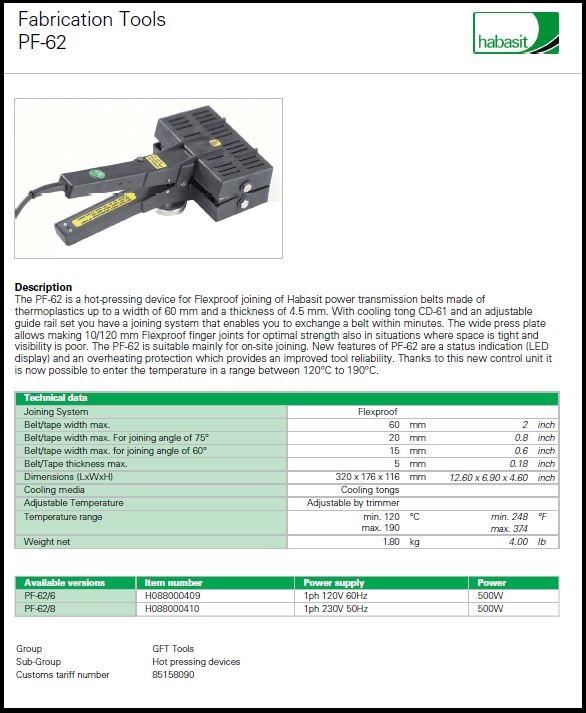

 Data Sheet User Manual
