MAN-05H

Part Number: MAN-05H-1/2

Main Industry Segments: Letter Sorting, Paper Manufacturing and Processing, Paper printing and finishing

Applications: Letter transport belt

Special Features: Abrasion resistant, Constant and gentle positive grip, Dimensionally stable, Elastic, Non-marking

$2.91 /PER FOOT
List price: $2.91 /PER FOOT
    • PER FOOT
  • Availability: Call for availability

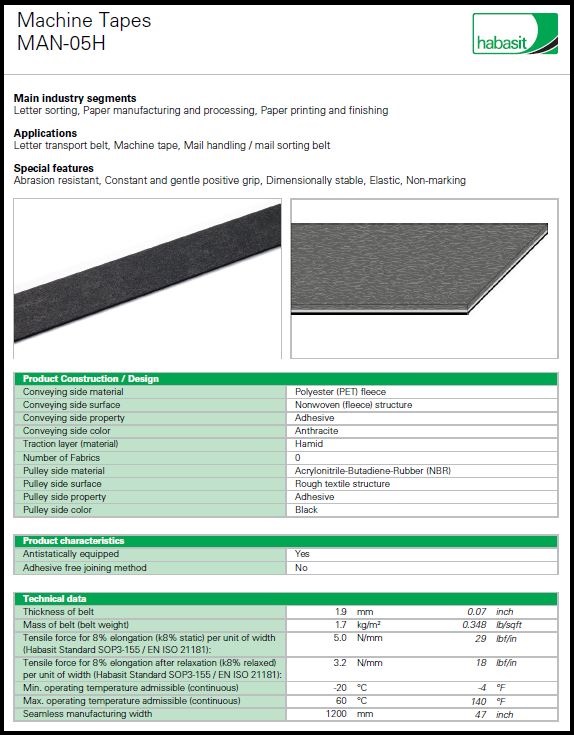

Product Construction
Conveying Side Material: Polyester (PET) fleece
Conveying Side Surface: Nonwoven (fleece) structure
Conveying Side Property: Adhesive
Conveying Side Color: Anthracite
Traction Layer: Hamid
Number of Fabrics: 0
Pulley Side Material: Acrylonitrile-Butadiene-Rubber (NBR)
Pulley side surface: Rough textile structure
Pulley Side Property: Adhesive
Pulley Side Color: Black


Product Data

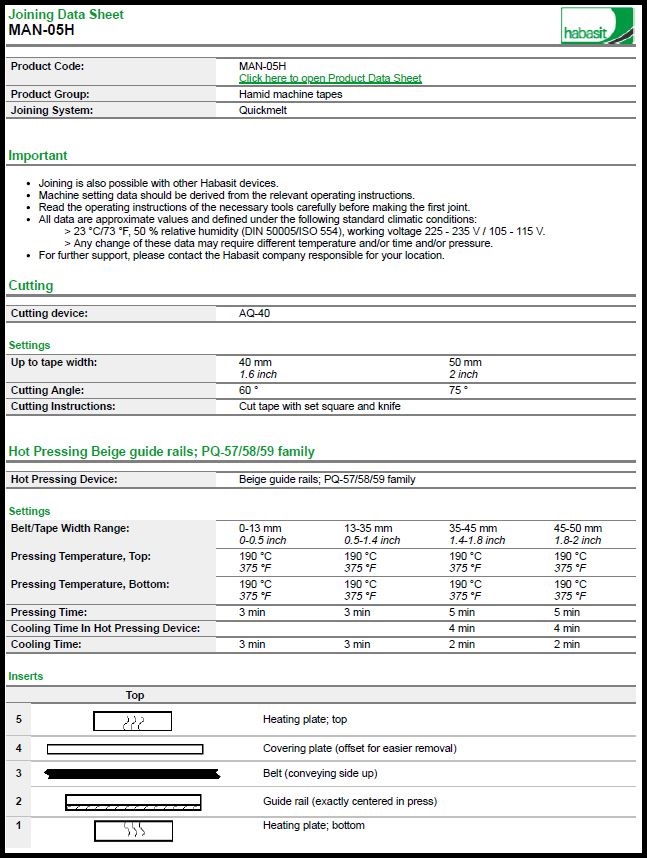

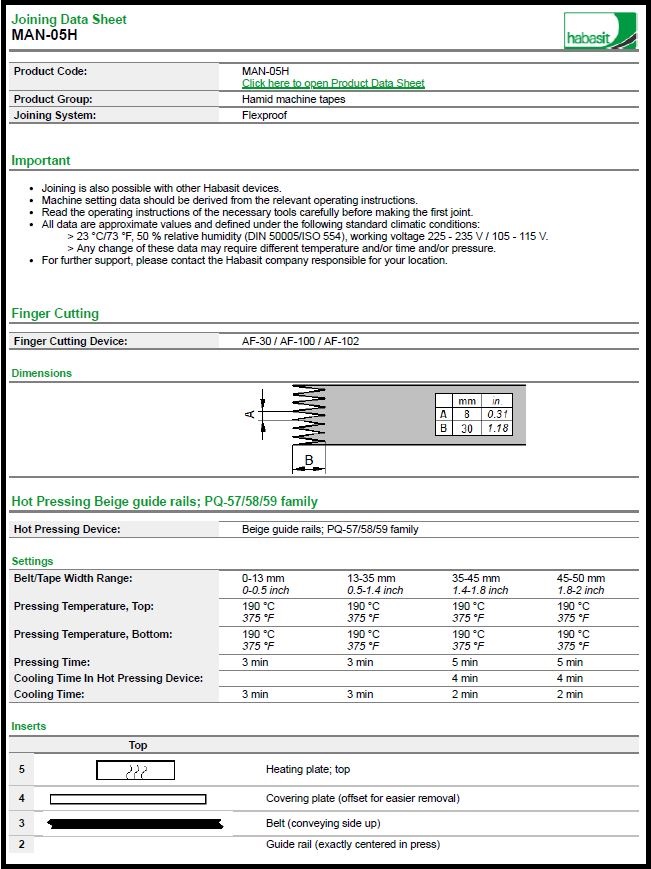

Joining Method: Quickmelt / Flexproof
Belt Thickness: 1.9mm (0.07 in.)
Antistatically equipped: Yes
Stretchy: No
Min. Operating Temp. -20°C (-4°F)
Max Operating Temp. 60°C (140°F)
Min. Pulley Diameter: 20mm (.79 in)
