Rhin-O-Tuff
• 14” (356 mm) open ended extra capacity die - Punch up to 55 sheets or 110 pages of 11 inch, 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
• U-View waste tray - Holds up to 150% more waste than any other table top punch & eliminates troublesome overfills.
• The Accu-Set Paper Stop - Set-up all hole placements easily & accurately to fit a comb, wire, coil or spiral book binding and paper binding, even with odd sized paper.
• New Diagnostic Display Lights - Give indications of important machine conditions.
• Automatic and Manual Reverse - Providing extra insurance to reduce costly down time & expensive service calls due to overload jams.

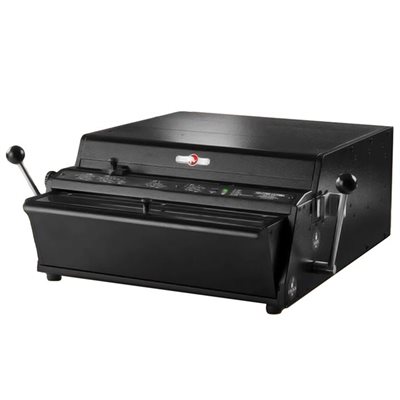

With these new features plus a 3 year warranty along with all of the standard features below, the HD7700 Ultima will handle any size project, large or small. Designed for high volume commercial and corporate use.
| Technical Data | |
|---|---|
| Model: | ONYX HD7700 |
| Sheet Width Capacity: | 14" |
| Punch Capacity: | 55 sheets (110 pages) of 20 lb (80 GSM) bond |
| Cycles per Minute: | 25 |
| Electrical: | 115 VAC, 4 Amp, 60 Hz (standard) |
| Dimensions: | 8-1/2" H x 21" W x 22-1/2" D |
| Machine Weight: | 96 lbs |
 |  |  |

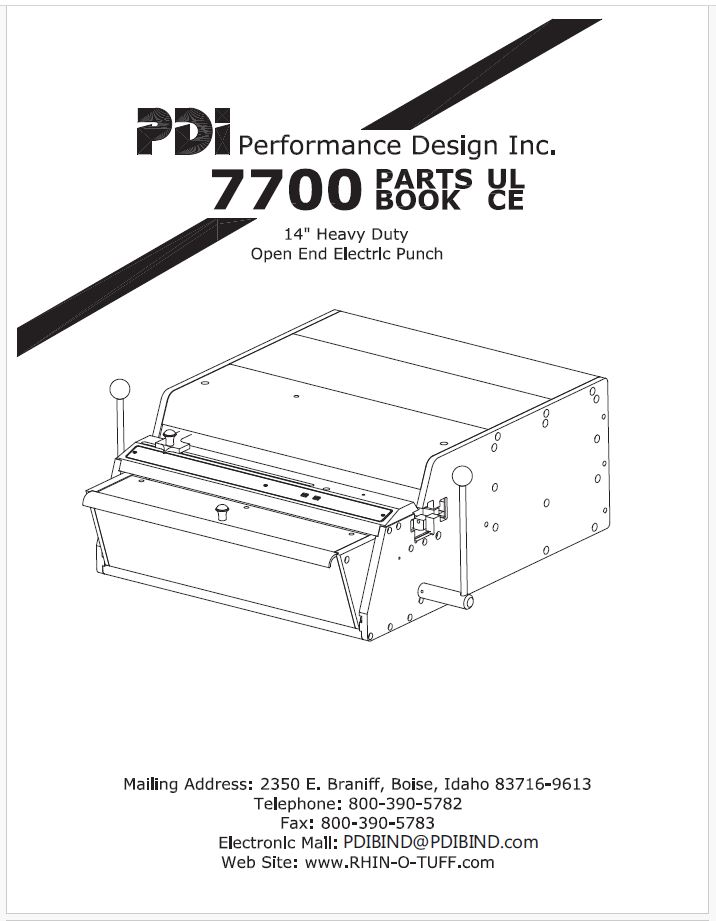

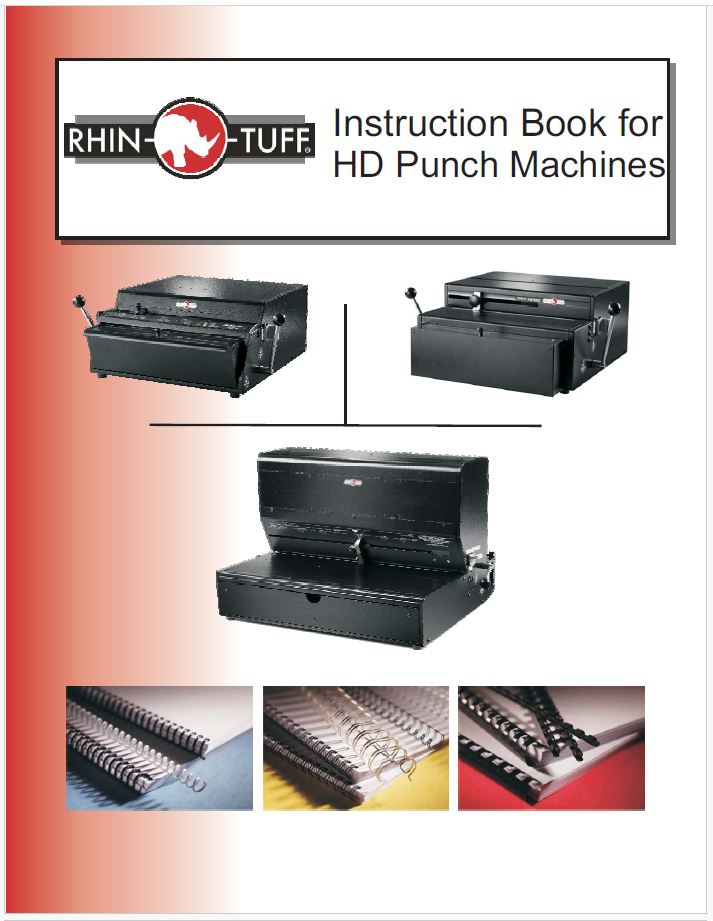

| Data Sheet | Operation Manual | Parts Manual |
