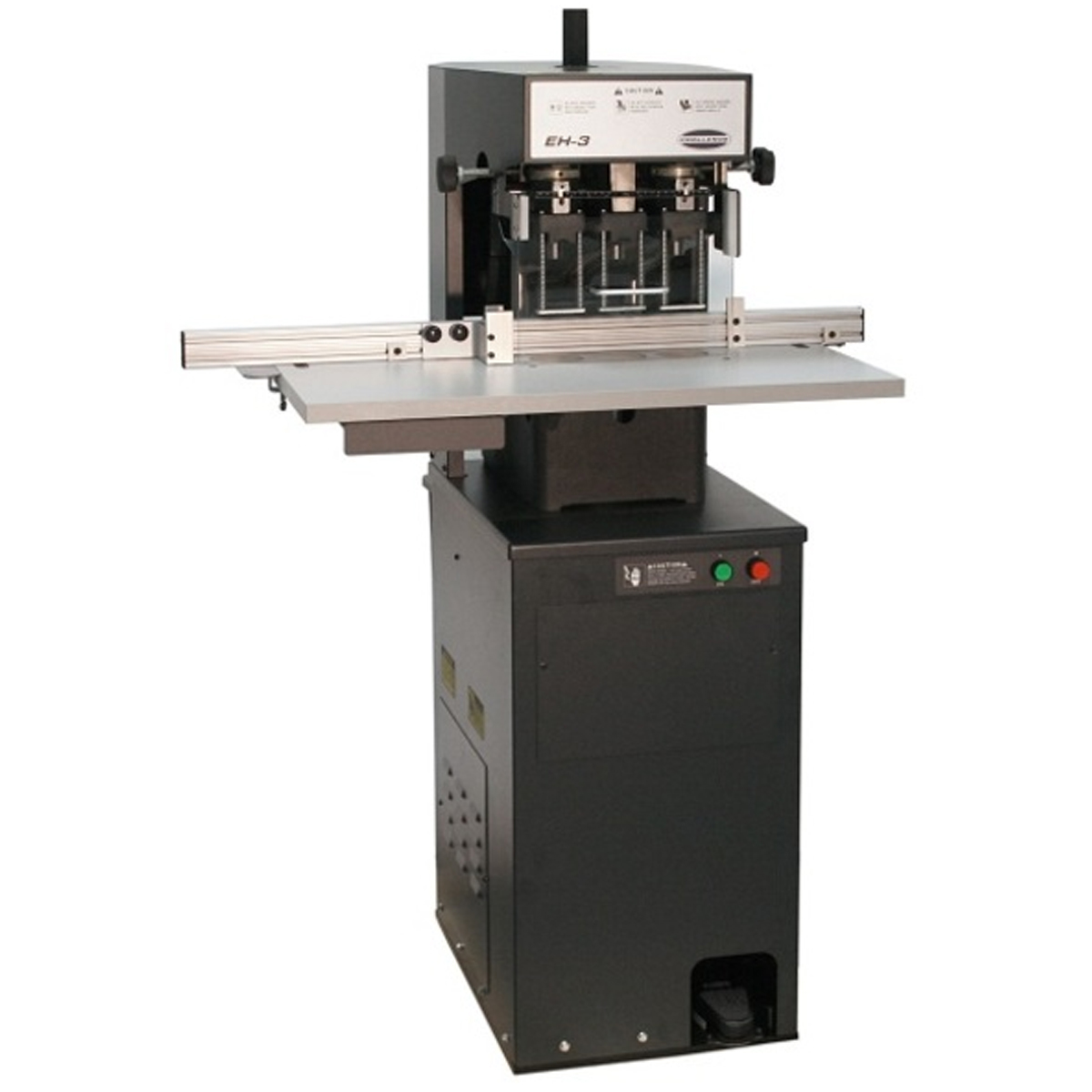

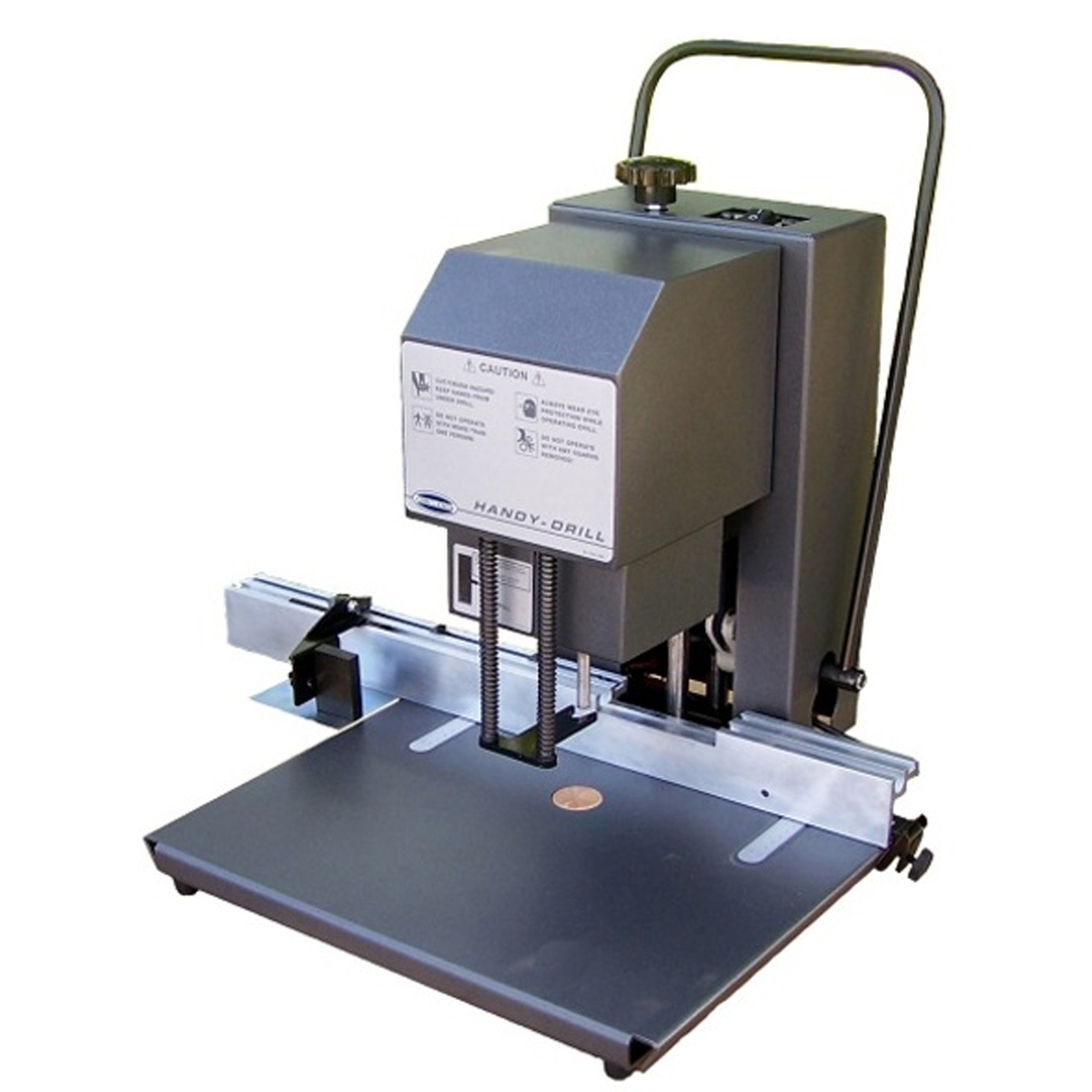

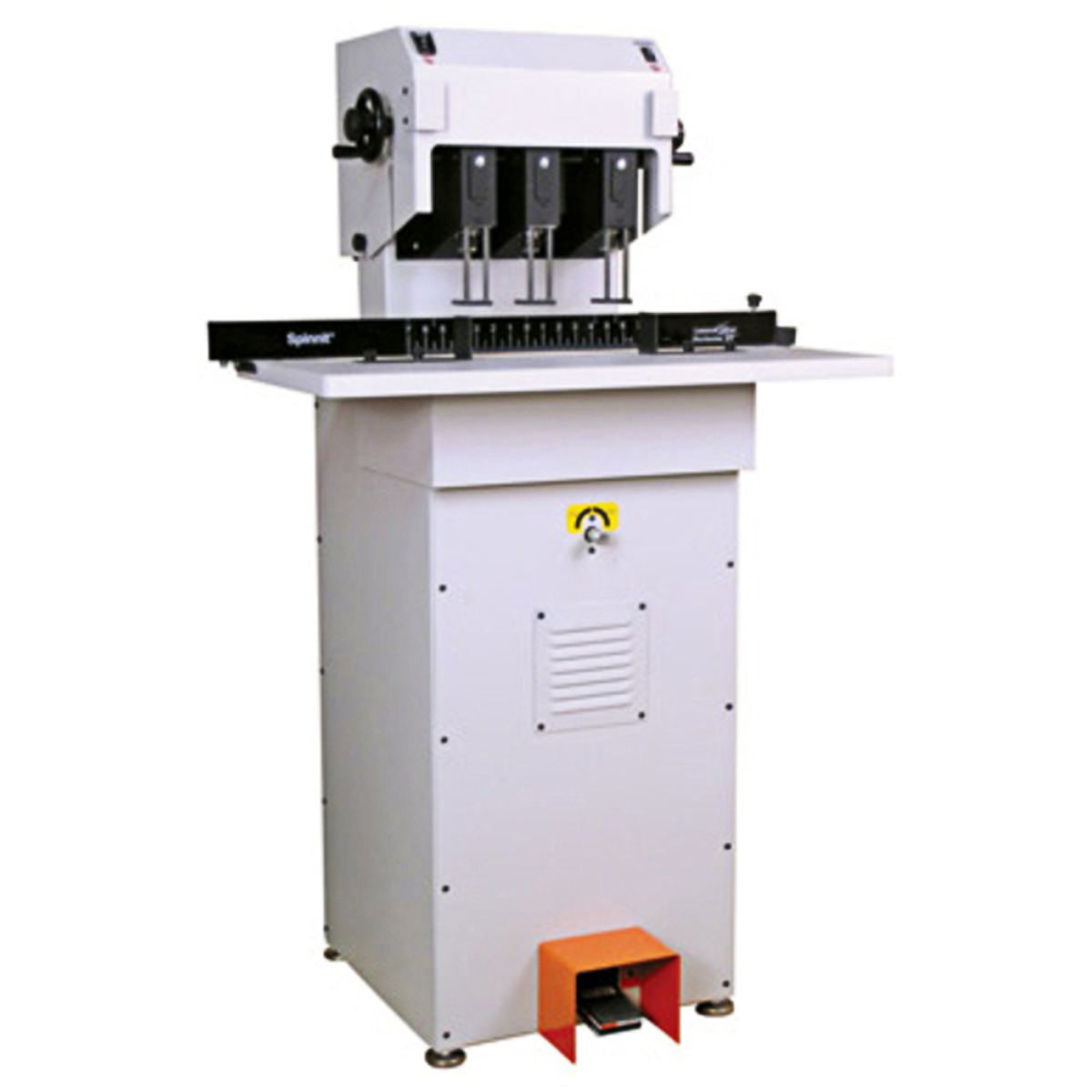

| Model Name | EBM-S | EBM-2.1 | Handy-Drill | FM-2 | JF Drill | FMM-2 | FMM-3 | FMMH-2 | FMMH-3 | FMMH-2.1 | FMMH-3.1 | EH-3 Standard | EH-3 Auto-Trip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |  |  |  | |
| # of Spindles: | 1 | 1 | 1 | 2 | 3 | 2 | 3 | 2 | |||||
| Max Capacity: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2.5" | |||||
| Lift: | Manual | Manual | Manual | Manual | Manual | Hydraulic | Hydraulic | Hydraulic | |||||
| Table Size: | 12" x 18" | 12" x 18" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | |||||
| Table Height: | 3.5" | 3.5" | 35.5" | 35.5" | 35.5" | 35.5" | 35.5" | 36" | |||||
| Base Footprint: | 12" x 13.5" | 12" x 13.5" | 15" x 15" | 15" x 15" | 15" x 15" | 15" x 15" | 15" x 15" | 18" x 22" | 18" x 22" | ||||
| Spindle Motor: | 1/4 HP, 115V | 1/4 HP, 115V | 1/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V |
