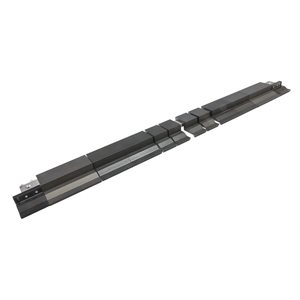

Our MBO Segmented Glue Roller is designed for the Parallel and 8-page (Unit I & II) sections of MBO B26 folding machines. Its adjustable glue collars allow operators to position gaps between roller segments wherever adhesive lines are required, providing flexibility for different folding and gluing applications.

| Product Data | |
|---|---|
| Product Type | Segmented Glue Roller Assembly |
| Compatible Machines | MBO B26 |
| Folding Unit | Unit I & II – Parallel and 8 Page |
| Shaft Diameter | 30 mm |
| Shaft Length | 891 mm (approx. 35-1/16") |
| Glue Collars Included | 16 – Part # UP3352 |
| Bearings Included | 2 – Part # UP3187 |
| Primary Application | Adjustable glue-line clearance for folding and gluing operations |

Replacement glue roller collars for MBO shafts.

Narrow collars for closer glue line spacing.

Helps prevent glue from contacting fold plates.
Proper roller setup is important for consistent folding and gluing performance. When adjusting the segmented roller, verify that the clearance between collars corresponds with the intended adhesive line positions.
This assembly is intended for the Parallel and 8-page (Unit I & II) fold unit. Verify your machine model, folding unit, shaft dimensions, and existing gluing arrangement before ordering. Segmented roller installation does not replace the need for a compatible adhesive application system and appropriate fold plate clearance.
