Meech 993R Static Generator Bar 100mm (4.00" overall) w/ Compact Plug
Part Number: 993R-CP-0100
The Model 993R (w/ compact plug connector) is a high-efficiency Static Generator Bar that is compatible with the Meech 30kV DC power supply. This model is equipped with resistively coupled emitter pins, which significantly reduce the risk of shock and ensure a stable and controlled power output. The emitter pins produce positively or negatively charged ions depending on the polarity of the DC power supply. Static generator bars are excellent for industrial applications where static bonding of non-conductive materials is required. Industries include printing, packaging, converting, and more. These generator bars are also available in 50kV versions.
List price: $606.00 /EACH
- Meech 993R Static Generator Bar 200mm (7.75" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 300mm (11.75" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 400mm (15.75" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 500mm (19.75" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 600mm (23.75" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 700mm (27.50" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 800mm (31.50" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 900mm (35.50" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 1000mm (39.25" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 1100mm (43.25" overall) w/ Compact Plug
- Meech 993R Static Generator Bar 1200mm (47.25" overall) w/ Compact Plug
- Availability: Available to Order
Complete System:
- 993R Static Generator Bar (up to 2 per power supply)
- IonCharge30 Power Supply (x1)
- 900IPS Power Cable (48W) (x1)
Specifications
Technical Data |
Operating Voltage: Up to 30kV |
Cable: 2 meters shielded in flexible conduit (longer lengths available) |
Construction: PVC extrusion, titanium emitter pins |
Mounting: Two M10 x 50mm nylon studs |
Max Temperature: 60º C (140º F) |
Operating Current: 0.5mA max |
Polarity: Either positive or negative |
Dimensions: 22mm x 44mm x Length |

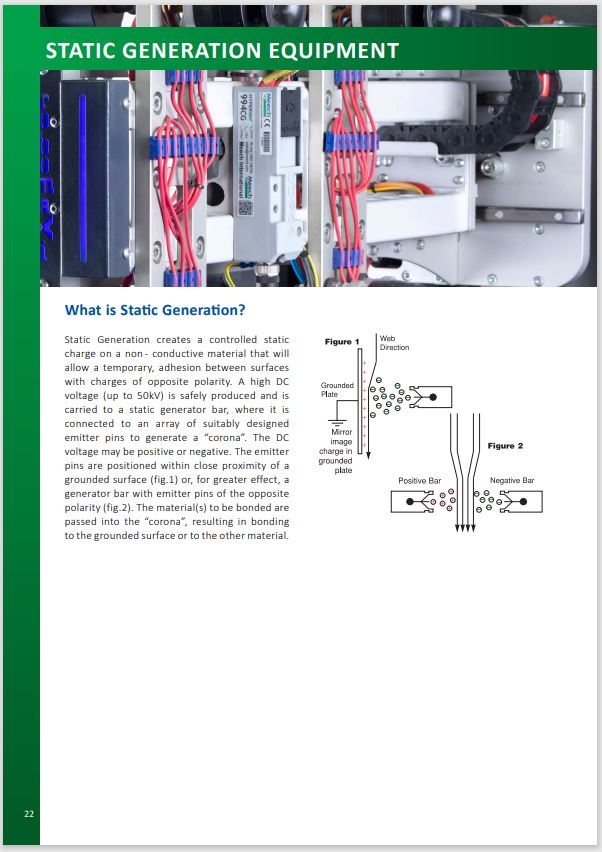

Documents
Data Sheet | Operating Manual | Overview |
