Meech IonCharge50 Static Generator 50kv Negative (-)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech IonCharge50 Static Generator 50kv Negative (-)

Part Number: IC50-N

The Meech IonCharge50 offers up to 50kV of controlled static charge using advanced high voltage technology and software. Designed for applications like pinning, bag making, and card insertion, it imparts temporary bonding between insulative materials through the use of generator bars or pinning heads. With independently selectable voltage and current, and a user-friendly color touchscreen interface, IonCharge50 provides versatile and effective static generation for various materials and applications. Available in either Negative (-) or Positive (+) ion polarity. Also available in 30kV versions.

Power Cable sold separately.

$3,007.00 /EACH
List price: $3,007.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

- IonCharge50 Power Supply (x1)

900IPS Power Cable (96W) (x1)

993R Static Generator Bar or 995 Pinning Head (up to x2 units per power supply)

Specifications

 Technical Data
Max Output Power: 75W
Max Power Consumption: 100W
Output Voltage: 0-50 kV
Output Polarity: Negative
Supply Voltage: 24V DC
Input Connection: M8 4 Pole (24V DC)
Output Current: 0-2.5mA
User Interface: 5" Touch Screen
 HT Output: 2x Meech 50kV connection ports
 Weight: 8.25 lbs
 Dimensions: 231.4 x 126 x 268.5mm

Documents

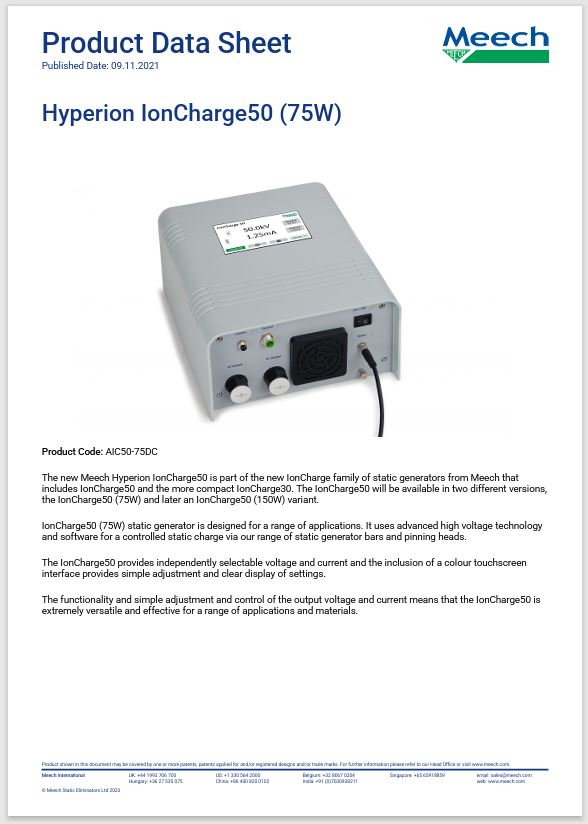

Data Sheet
 Overview
