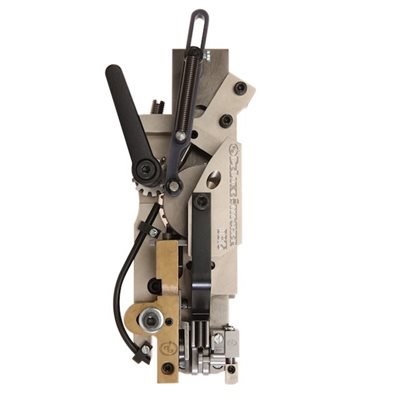

Stitcher Head Assembly, Medium Clincher Plate
Part Number: DB75MPHD251/2
The DB75 is a high-quality alternative replacement for Muller HK75 stitcher heads - Muller #'s 0881.8170 & 0881.8070. Almost all parts are interchangeable between the DB75 and Muller original HK75 heads.
Includes the stitcher head, clincher assembly and wire guide.
$2,840.00 /EACH
List price: $2,840.00 /EACH
List price: $2,840.00 /EACH
- Availability: Available to Order
Specifications
| Technical Data | |
|---|---|
| Max Capacity: | 2 sheets to 5mm |
| Crown Width: | 13mm |
| Wire Sizes: | 25 gauge round (0.6mm) |
| Minimum Center-to-Center: | 75mm |
| Clincher Assembly: | 4.1" tall rectangle |
| Machines: | Presto, Valore, Minuteman (built after 2004) |

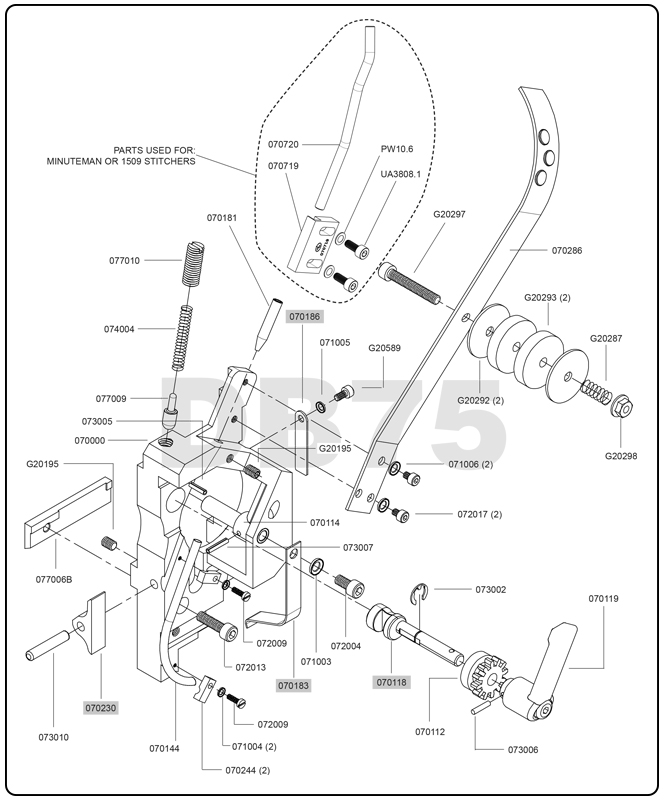

Bonnet and Wire Guide Spring, Sub-Assemblies
Click part numbers in the diagram for product pages

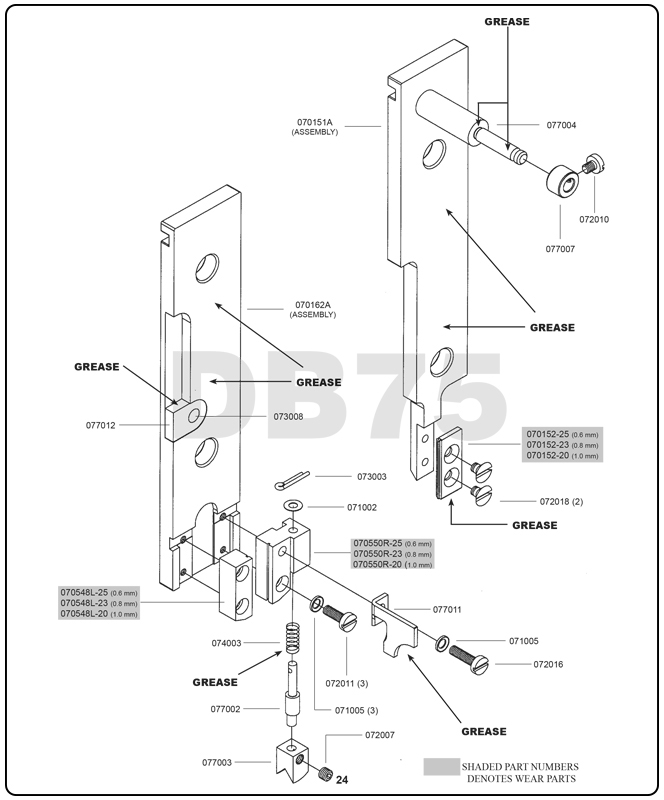

Driver and Bender Inserts
Click Part Numbers in the diagram for product pages
Cutter Box Assembly
Click part numbers in the diagram for product pages

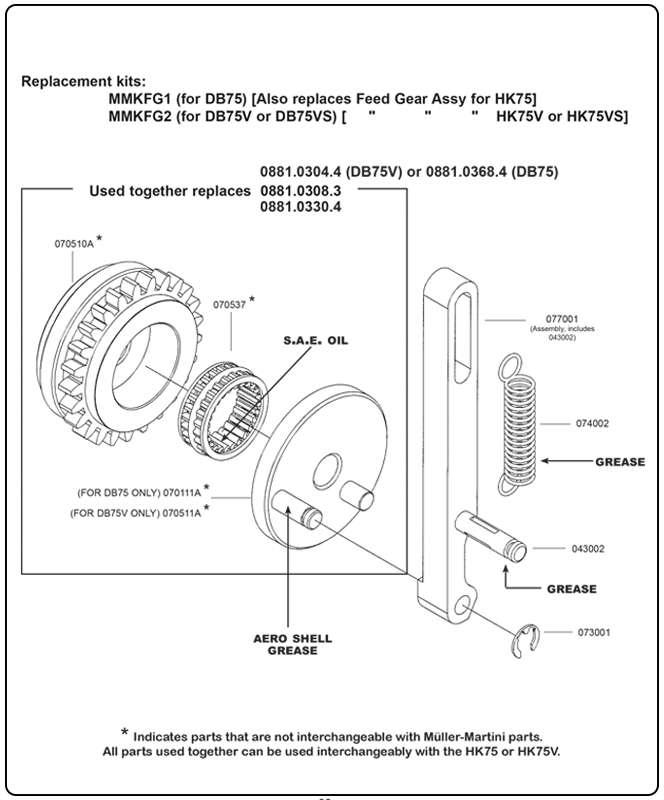

Feed Gear Assembly
Click part numbers in the diagram for product pages
Wire Holder Assemblies
Click part numbers in the diagram for product pages
Medium Clincher Plate
Used on all Presto & Valore machines. Used on Minuteman (1509) machines built after Jan. 2004.
Click part numbers in the diagram for product pages
