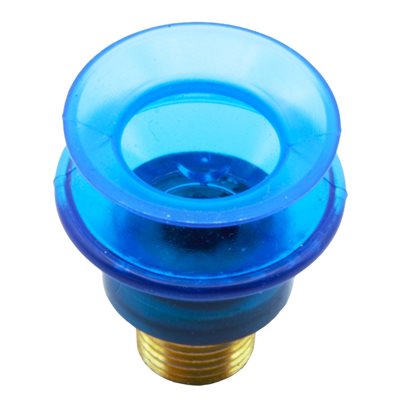

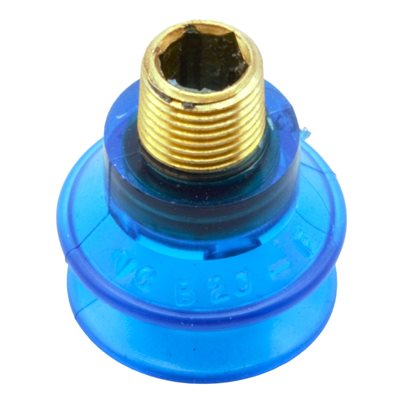

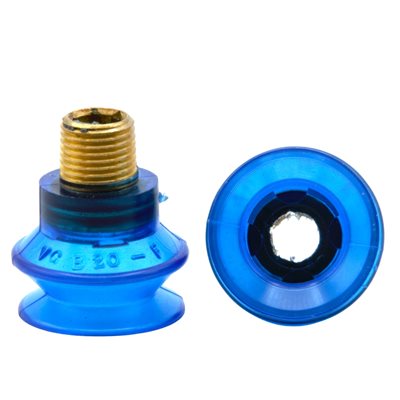

Blue Vinyl Vacuum Cup 1.07H x .87W x 1/8 MPT w/Cleats Style J
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.07H x .87W x 1/8 MPT w/Cleats Style J

Part Number: VC-B20F 1/8 MPT

$7.96 /EACH
List price: $7.96 /EACH
    • EACH
  • Availability: Available to Order
 Dimensions in mm
Outer Lip Diameter 0.87 22.1
Overall Height 1.07 27.2

 General Information
 Material: Vinyl  Thread Size: 1/8 NPT MALE
 Mounting Type: Threaded  Cleats: Yes
 Bellows: 1  Suggested Use: Uneven Surface

   Style J Dimensions in mm
 Dimension A 0.87 22.1
 Dimension B 1.07 27.2
 Dimension C 0.46 11.7
 Dimension D 0.62 15.7
 Dimension E 0.46 11.7
Dimension H 0.45 11.4

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
