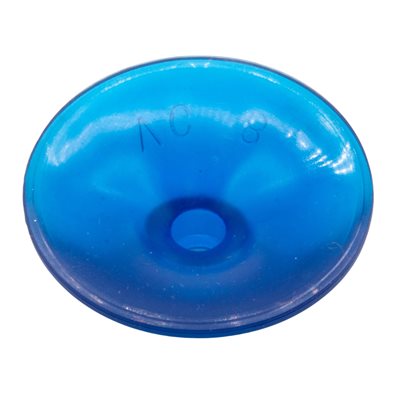

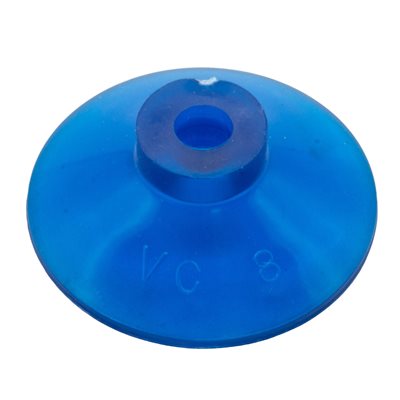

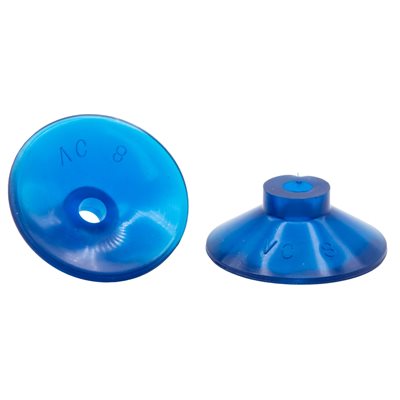

Blue Vinyl Vacuum Cup .56H x 1.51W x .23B Style B
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .56H x 1.51W x .23B Style B

Part Number: VC-8

1x $5.67 /EACH
25x $5.40 /EACH
50x $5.00 /EACH
100x $4.17 /EACH
200x $3.60 /EACH
List price : $5.67 /EACH
    • EACH
  • Availability: In stock
 Dimensions in mm
Outer Lip Diameter 1.51 38.4
Mounting Stem ID 0.23 5.8
Overall Height 0.56 14.2

 General Information
 Material: Vinyl
 Mounting Type: Snap Over  Cleats: No
 Bellows: 0  Suggested Use: Pick and Place

   Style B Dimensions in mm
 Dimension A 1.51 38.4
 Dimension B 0.56 14.2
 Dimension C 0.35 8.9
 Dimension D 0.56 14.2
 Dimension F 0.23 5.8
 Dimension H 0.21 5.3

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
