XVT-2237 Polyamide Folder-Gluer Belt 1-3/4"

Mouse over the image to zoom. Double-tap and hold to zoom.

XVT-2237 Polyamide Folder-Gluer Belt 1-3/4"

Name: XVT-2237 Polyamide Folder-Gluer Belt 1-3/4"
Brand: Habasit
SKU: XVT-2237-1-3/4
Price: 10.94 USD
Availability: InStock

Part Number: XVT-2237-1-3/4

Main Industry Segments: Cardboard converting, Paper manufacturing and processing

Applications: Folder-gluer belt, processing belt, tube winder belt

Special Features: Abrasion resistant, constant coefficient of friction, forgiving in case of short term shock-like overloads, robustness

$10.94 /PER FOOT

XVT-2237 Polyamide Folder-Gluer Belt 1/2"

XVT-2237 Polyamide Folder-Gluer Belt 1"

XVT-2237 Polyamide Folder-Gluer Belt 1-1/4"

XVT-2237 Polyamide Folder-Gluer Belt 1-1/2"

XVT-2237 Polyamide Folder-Gluer Belt 2"

Belting Thickness (mm) 3.00mm
Belting Joining Method Thermofix

Qty

PER FOOT

Online Availability

Available to Order

Description

Specifications

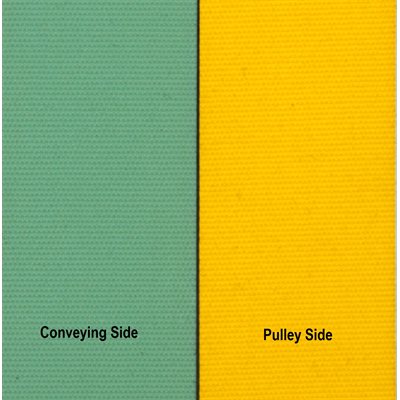

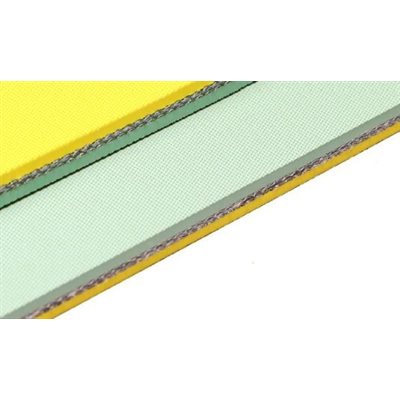

Product Construction
Conveying Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface:	Rough Structure
Conveying Side Property:	Adhesive
Conveying Side Color:	Light Green
Traction Layer:	Polyamide
Number of Fabrics:	2
Pulley Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Pulley Side Surface:	Rough Structure
Pulley Side Property:	Adhesive
Pulley Side Color:	Yellow

Product Data
Joining Method:	Thermofix
Belt Thickness:	3.00mm (0.12 in)
Tensile Force (1% elongation/unit of width):	5 N/mm (29 lbf/in)
Min. Operating Temp:	0°C (32°F)
Max Operating Temp:	100°C (212°F)
Min Pulley Diameter:	30mm (1.18 in)
