Akiles

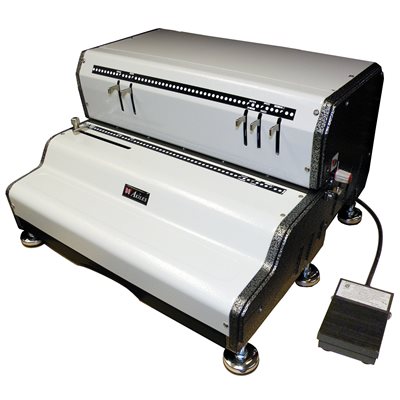

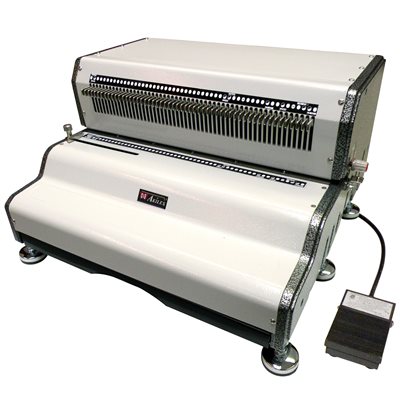

• Electric Punch Operation: Powerful punching capability with a simple press of foot pedal.
• Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
• High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13" length (53 holes).
• Super Strength Punch Mechanism with exclusive “Precision Guiding System&trade” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation every time.
• Electric Reverse (Anti-Jam) Function: For trouble-free punching.
• Finish@Coil Compatible: Included mounts allow for a Finish@Coil-M or E1 to be securely mounted on top of the CoilMac-ECP41 or ECP41+ (sold separately). This upgrade will offer operator the electric binding and/or crimping feature, on all coil sizes (up to 50mm).

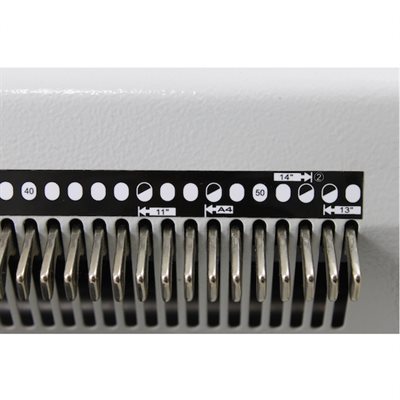

• Side Margin Control: Provides an evenly centered punch for all document sizes.

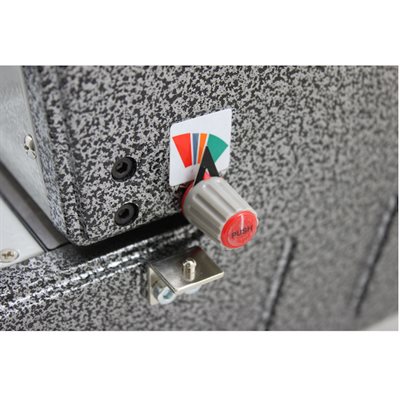

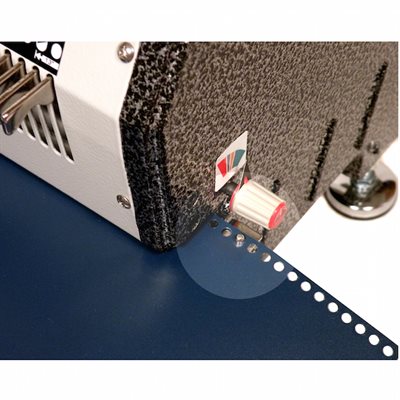

• Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
• Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
• Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
• Extra-High-Capacity Waste Drawer
• 6 Height-Adjustable Non-Skid Metal Feet
• CE Certification: All components certified & approved by CE for most stringent safety requirements.
• ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards
• Includes Coil Diameter Selector & Premium Oval Coil Crimpers
| Technical Data | |
| Model: | CoilMac-ECP41 |
| Punching Operation: | Electric |
| Pitch: | Standard 4:1 (0.25") |
| Hole Size: | Round (4mm) |

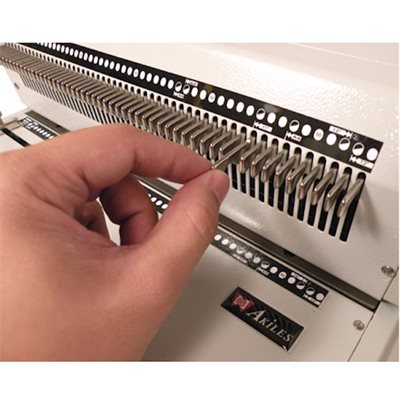

| Disengageable Dies: | 5 out of 53 |
| Punching Length: | 13.5" (53 holes) |
| Punching Capacity: | Up to 25 sheets (20 lbs paper) |
| Finish@Coil Mounting Bracket: | Compatible with Finish@Coil-M or E1 |
| Binding Capacity: | Up to 2" (with Finish@Coil-M or E1) |
| Volume: | 4.33 CbFt |
| Weight: | 60 lbs |
| Warranty: | One year |
 |  |
| Brochure | Operation Manual |
