| General Information | |
| Material: Vinyl | Thread Size: Specify |
| Mounting Type: Threaded | Cleats: No |
| Bellows: 0 | Suggested Use: Heavy Loads |

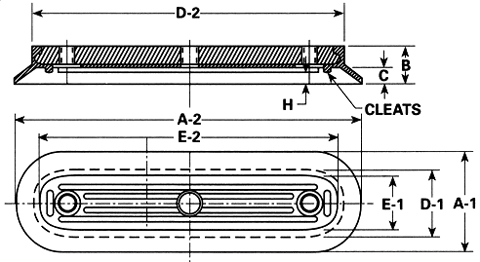

 | Style N Dimensions | in | mm |
| Dimension A | 5.59 | 142 | |
| Dimension A1 | 2 | 50.8 | |
| Dimension B | 1 | 25.4 | |
| Dimension C | 0.5 | 12.7 | |
| Dimension D1 | 1.25 | 31.8 | |
| Dimension D2 | 5.23 | 132.8 | |
| Dimension E1 | 1.17 | 29.7 | |
| Dimension E2 | 5.15 | 130.8 | |
| Dimension H | 0.12 | 3 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
